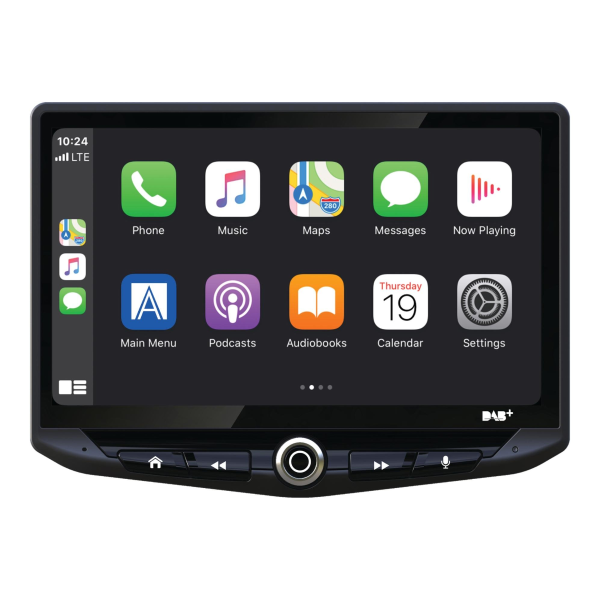

AERPRO 10" MULTIMEDIA RECEIVER WITH APPLE CARPLAY

Brand: Aerpro
Availability: 1
Part No
AERA10D

Description

The Aerpro AERA10D Multimedia Receiver with DAB+, Apple CarPlay and Android Auto features a high-resolution anti-glare 10" capacitive touchscreen with 16.7 million colours, designed to enhance the screen size and in-car entertainment experience for drivers of any vehicle. Featuring the latest in-car technology including: Apple CarPlay, Android Auto, DAB+ Radio, Bluetooth, Dual USB Inputs and HDMI, the AERA10D will keep you connected and entertained on the road. The head unit provides the ultimate sound experience thanks to the high power 4x50W peak built-in amplifier, 4V 6CH RCA audio outputs with subwoofer control, Toslink (optical) audio output, 15-Band adjustable EQ, adjustable hi-pass front/rear and lo-pass subwoofer crossover and time alignment. Engineered with maximum installation flexibility, the modular design allows for the main body to be mounted remotely from the display making it compatible with single* and double DIN openings using standard radio installation kits, as well as custom* installations where a standard aftermarket radio might not be an option due to fitment constraints.





Important Information:

  • (*) AMH1 required for single DIN installation, AMH8 required for custom installation (parts sold separately).



Features

  • 10" Large anti-glare HD digital capacitive touchscreen
  • DAB + Digital radio
  • Works with Apple CarPlay (wired)
  • Supports Android Auto (wired)
  • AM / FM Tuner - PTY/RT information
  • Hema Maps Ready (Aerpro AMHXD3 required, sold separately)
  • High power 4x50W peak built-in amplifier
  • 4V 6CH RCA audio outputs with subwoofer control
  • Toslink (Optical) Variable Audio Output
  • 15 Band adjustable EQ wit 6 user pre-sets
  • 1 HDMI rear input
  • 2 USB rear inputs 1.5 amp output
  • Handsfree Bluetooth 4.2 A2DP with aptX
  • 4 Camera video inputs with wired triggers
  • Mic audio input from rear camera
  • Hardwired remote control ready (steering wheel controls)
  • Customisable display backgrounds
  • Modular mounting design suitable for single DIN, double DIN and custom installation
  • Includes harness



Specs

GENERAL

  • Operating Voltage: 9.0VDC to 18VDC
  • Grounding system: Negative Ground
  • Max current consumption: 10A fused

DIMENSIONS:

  • Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
  • Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)

DISPLAY:

  • Size: 10-inch Diagonal
  • Aspect Ratio: 16:9
  • Resolution: 1024 x 600
  • Pixels: 1,843,200
  • Active Area: 222.72 (W) x 125.28 (H) mm
  • Operating Temperature (C) -20 to 70

AUDIO:

  • Peak Power Output: 50W x 4ch/4Ohm
  • Load Impedance: 4OHM nominal / 2OHM allowable
  • Continuous Power Output: 25W x 4ch/4OHM 20Hz to 20KHz,
  • THD: 1 Per Cent THD at 14.4V
  • Audio output level (max): 4.0V preout
  • EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
  • Gain: +/- 12dB (2dB/step)
  • HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB
  • Subwoofer Preout
  • LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB
  • Gain: -14dB to 7dB (1dB/step)
  • Phase: 0 or 180
  • Speaker Level: +/- 9dB (1dB/step)
  • Time Alignment: 0 to 133 step (inch/ms)

USB:

  • USB: 2.0
  • Max Current Supply: 1.5A
  • USB Class:
    • MSC (Mass Storage Class),
    • MTP (Media Transfer Protocol)
  • File System: FAT32, NTFS

BLUETOOTH:

  • Version: V4.2 dual
  • Class: 4dBm Class2
  • Frequency: 2.4GHz to 2.48GHz

TUNER:

  • FM Frequency Range: 87.9MHz to 107.9MHz
  • AM Frequency Range: 530KHz to 1710KHz

CAMERA(S) VIDEO INPUTS:

  • Format: NTSC OR PAL video formats

HDMI INPUT:

  • Supported HDMI Resolutions:
    • 640480p, 720480p, 1280*720p,
    • 19201080i, 19201080p
More Information
Manufacturer Aerpro
