HERTZ 1

HERTZ 1" 120W TWEETER SYSTEM

HERTZ 4

HERTZ 4" X 6" 80W 2 WAY COAXIAL SPEAKER (SET OF 2)

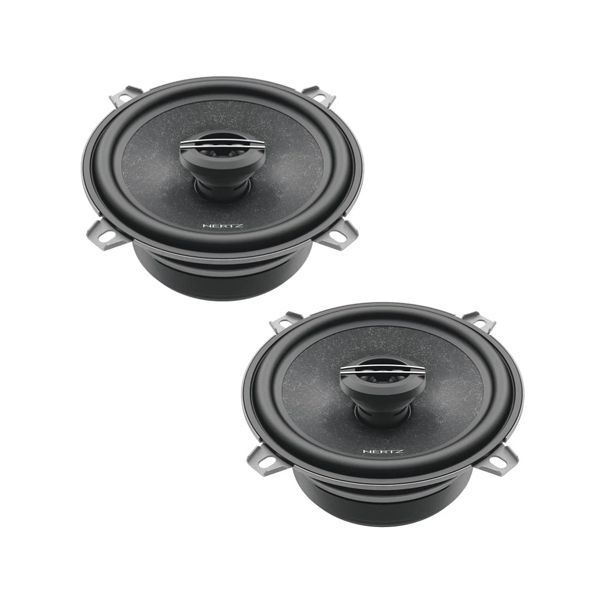

HERTZ 4" 120W 2 WAY COAXIAL SPEAKER (SET OF 2)

Brand: Hertz
Availability: 1
Part No
CX100

Features

  • Soft Tetolon fiber 24 mm (0.9 in.) dome tweeter cooled with ferrofluid, for extended and natural high frequencies.
  • RHFC (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario.
  • Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
  • 25 mm (1 in.) woofer voice coil featuring an aluminum former to guarantee high excursion and power handling.
  • 100 mm (5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
  • High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
  • Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
  • Elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh, available as optional.



Specifications

Power Handling - Peak W 120
Power Handling - Continuous W 40
Impedance 4
Frequency response Hz 80 / 22k
Sensitivity dB SPL 92
Woofer size mm (in.) 100(4)
Tweeter size mm (in.) 24 (0.9)
Woofer Voice Coil mm (in.) 25 (1)
Tweeter voice coil mm (in.) 13 (0.5)
Woofer magnet High density flux ferrite
Tweeter magnet Neodymium
Woofer cone Semi-pressed paper + Mica
Tweeter dome Tetolon
More Information
Manufacturer Hertz
