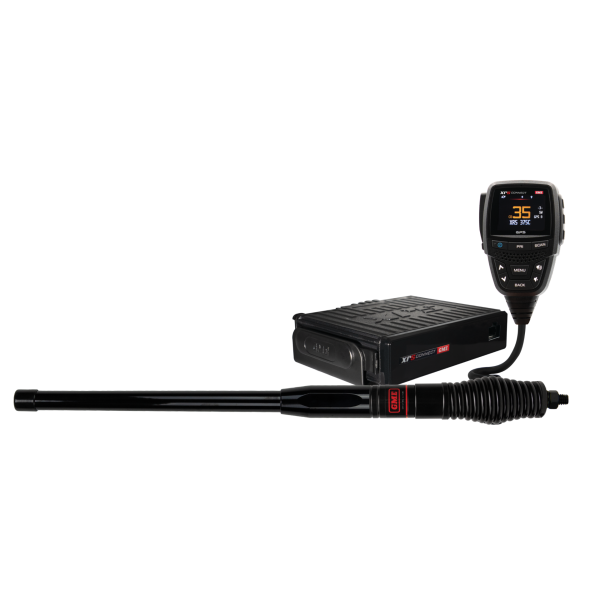

GME CONNECT COMPACT HIDEAWAY UHF RADIO WITH BLUETOTH & AE4704B AERIAL

XRS™ Connect is an Australian Made radio platform designed to be smart, adaptable, and rugged.

Building on the strong heritage of our first generation of XRS™ Connect radios, the all-new XRS™ range once again raises the benchmark for UHF CB Radios, with numerous advancements in technology ensuring GME remains at the cutting-edge of two-way radio communication.

The second generation of XRS™ radios boast a suite of innovative new features including a powerful 3-watt speaker, IP67-rated microphone, high-contrast Colour TFT LCD screen, built-in GPS receiver, Bluetooth Audio connectivity, Noise Reduction technology, and multiple user-customisable buttons.

The XRS-375C features a Compact metal chassis with a secondary speaker in the base unit – ideal for installation in noisy 4WDs and other loud machinery – ensuring maximum audio output in any conditions. The XRS-375C also boasts a MIL-STD 810H rating for resistance to Vibration, Shock, Temperature and Humidity.

Includes

• XRS™ Connect UHF CB Radio (XRS-375C)
• Professional-grade Speaker Microphone (MC670B)
• Magnetic Microphone Mounting Bracket (MB207)
• Microphone Extension Lead (LE040)
• Microphone Extension Adaptor Kit (AD008)
• 12V DC Power Lead (LE125)
• 2.1dBi Heavy Duty Radome Antenna (AE4704B)
• Mounting Bracket
• Mounting Hardware

Features

• 5 Watt Compact Design
• Professional Grade IP67 Speaker Microphone
• 3 Watt Speaker Microphone
• Anti-Glare, Colour TFT LCD Screen
• Scansuite™ - Digital Scanning Technology
• Multiple User-customisable Buttons
• Bluetooth® - Audio & Data
• Built-in GPS Receiver - Location Aware
• Noise Reduction Technology
• Automatic Power Down
• User Updatable Firmware
• 12/24V Power Input
• MIL-STD 810H: Vibration, Shock, Temperature, Humidity
• XRS™ Connect - Smartphone Application
• XRS™ Connect Features – Voice Playback, Active Mute, Crewtalk, Location Services

Specifications

• Compliance: AS/NZS 4365 for Radio Communications Equipment in the UHF Citizen Band and Personal Radio Service
• Frequency Range: TX: 476.425 MHz – 477.4125 MHz
• Number of Channels: 80 CB + 400 Receive only Channels Across 8 Zones
• Channel Spacing: 12.5 kHz / 25 kHz
• Scanning Speed: 50 Channels Per Second (20 ms Per Channel)
• Antenna Impedance: 50Ω Nominal
• Nominal Supply Voltage: 12V DC or 24V DC
• Recommended Operating Voltage Range: 10V - 28V DC
• Battery Polarity: Negative Earth
• Overcurrent Protection: In-line 2 Amp Fuse
• Transmitter:
  • RF Output: 5W
  • Frequency Stability: < ± 1.5kHz
  • Modulation: FM
  • Spurious Emission: < -70 dBc
  • Maximum Deviation: < ± 2.5 kHz at + 20 dB AF Limiting
• Receiver:
  • Sensitivity: -122 dBm for 12 dB SINAD
  • Adjacent Channel Selectivity: -60 dB at ± 12.5 kHz
  • Audio Output Power: 3 W (4Ω)
  • Audio Signal to Noise: > 45 dB Unweighted
• Operating Temperature: -10° C to +60° C
• Dimensions (L x W x H): 128mm x 178mm x 32mm
• Weight: 390g
