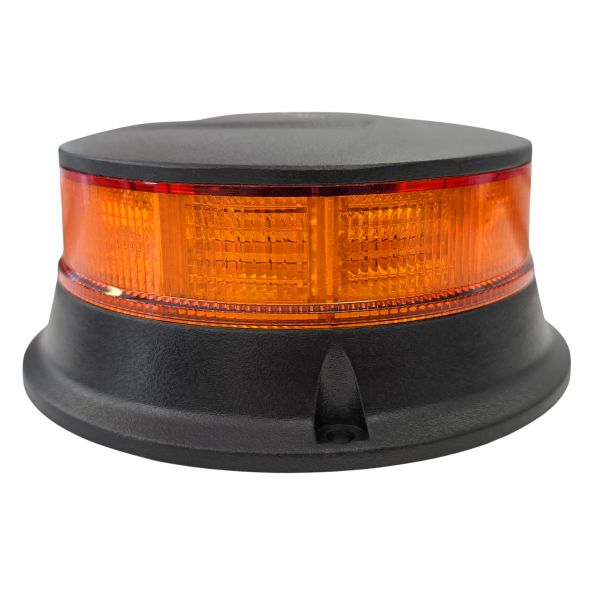

VIZISAFE 10-30V AMBER LED BEACON MAGNET MOUNT

The VS600 LED Beacons are manufactured with a heavy-duty construction, featuring an aluminum top and polycarbonate lens for impact resistance. Thanks to its IP67 rating they excel in durability, proving reliable for any harsh environments and weather.

---

Features

• 10-30V Input Voltage
• 19W
• 3 modes - Flashing
• 4 modes- Rotating
• IP67 Rating
• Aluminium Top for Impact Resistance
• SAE J845 Class 1
• ECE R65 Class 1
• EMC R10
• Screw base

---

10-30V INPUT RANGE
By utilising specialised dual voltage circuitry, the VS600 led beacon series can be fitted to most vehicles running between 10-30v across its electrical system, and with reverse polarity protection the beacon can be connected stress-free without worrying about incorrect wiring or backfeed damaging the electronics.

DURABLE
With heavy duty components including an aluminium top, poly carbonate lens and solid-state circuitry the vs600 beacon is purpose built to combat potential damage arising from impacts and mechanical vibrations during day-to-day use.

MOUNTING OPTIONS
VS600 beacons are made to be both tough and easy to work with, and so are available in the main three mounting options including 3-point bolt mount, flexi-din pole mount, and for temporary or mark-free mounting a dual suction-magnet mounting is also available.

7 FLASH PATTERNS
Featuring 3 flash and 4 rotation patterns (single/double/triple flash, and slow/fast clockwise/anticlockwise rotation) gives you flexibility in how you’re made visible and safe to surrounding personnel and machinery.
Depending on mounting option simply pulse the yellow pattern wire, toggle the selection switch or pulse power to the beacon for the bolt, magnet or pole mount beacons respectively to select desired flash pattern.

INGRESS PROTECTION
The VS600 range is rated for IP67 ingress protection, this means that our beacons are dust tight, water immersion resistant to a depth of 1m for 30 minutes, and all round weatherproof, ensuring that no matter the conditions of the job the lights will have your back.

ECE & SAE STANDARD APPROVED
Approved compliance under the ECE R65, ECE R10 and SAE J845 standards lets you be sure that the VS600 matches your requirements for the worksite with 360 degree class 1 light output for 24 hour visibility from at least 20m with correct installation.
