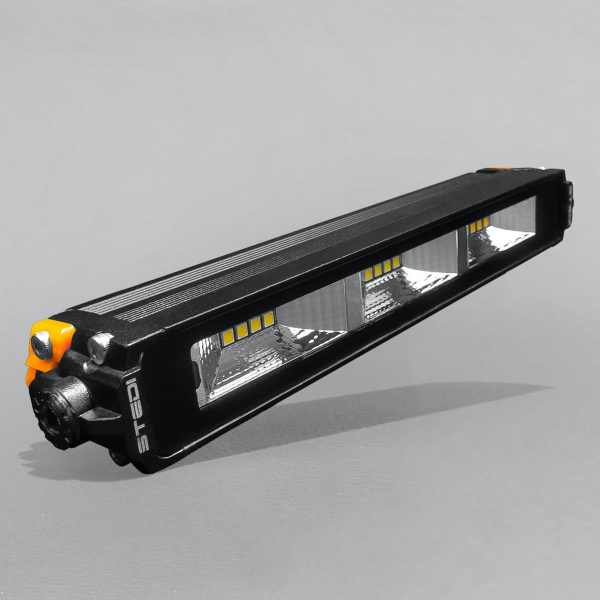

STEDI MICRO V2 10-28V 7.8" FLOOD BEAM LIGHT BAR
Brand:
STEDI
Availability:
Call for Price & Availablity
Part No
LED3520-7-18W
Price: Login to see price...
KEY FEATURES
- IP68 Ingress Protection
- 12x 3 Watt CREE LED
- Micro Profile at only 26mm
- Flood Beam - Perfect Rear Light, Awning Light or bumper or bull bar voids.
- Waterproof Deutsch Connectors Male and Female with wire tails
SPECIFICATIONS
| OPERATING VOLTAGE | DC 10-28V |
| POWER CONSUMPTION | 12W |
| AMP DRAW | 1.3A@12V/0.65A@24V |
| COLOUR TEMPERATURE | 5700K |
| LED | 12 x OSRAM GW PSLR 32. PM DRUISS |
| EFFECTIVE LUMEN | 1400lm |
| BEAM ANGLE | Height: 30° Width: 120° |
| ENVIRONMENT TEMP | -40° to 60°C |
| IP RATING | IP68 |
| LENS | Polycarbonate with Surface Hardening |
| FRAME/HOUSING | Extruded Aluminium |
| DT CONNECTOR | Included |
| MOUNTING BRACKET | 304# Stainless Steel |
| LIFETIME | 30, 000hrs |
| SIZE (mm) | 197.8 x 25.9 x 40.6 |
| WEIGHT | 0.3kg |
| CABLE LEGTH | 400mm |
| CERTIFICATION | CISPR25 |
What's Included
- 1 x 7.8 Inch Micro V2 LED Work Light (White)
- 2 x 46mm Side Brackets
- 2 x M8 Bolts
- 2 x M6 Bolts
- 2 x Nuts
- 4 x Flat Washer
- 4 x Spring Washer
- Male & Female Deutsch Connectors
*(current packaging showcases incorrect product title).
| Manufacturer | STEDI |
|---|
