Projecta 12-24V 20 Amp 4 Stage Automatic Solar Controller
Brand:
Projecta
Availability:
1
Part No
SC220
Price: Login to see price...

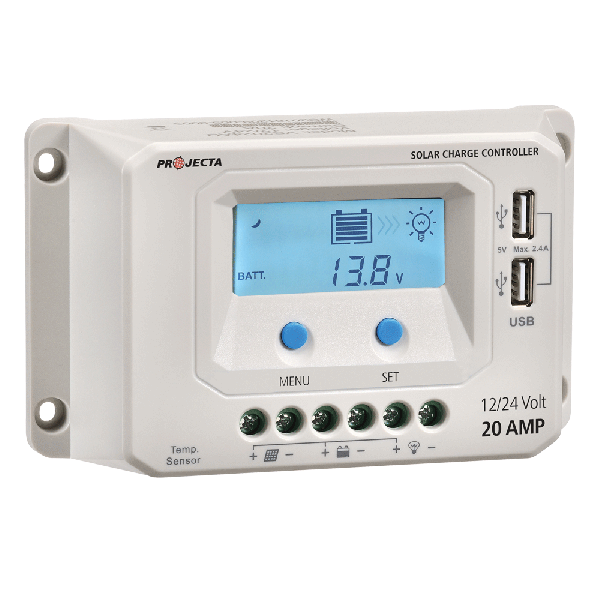

Projecta 12-24V 20 Amp 4 Stage Automatic Solar Controller
Ideally suited to solar panels producing up to 20 Amps, the SC220 is a sophisticated solar controller that delivers a comprehensive 4 stage charging process and the ability to tailor its settings to best suit your battery type.
FEATURES
- Digital L.E.D screen
Displays battery voltage, charging current, charging capacity, fault codes and more. - Dual USB ports
5V 2.4A USB ports for powering direct from controller. - Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings. - Low voltage disconnect
Enables you to protect your battery from over discharge. - Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. - Optional sensor probe also available.
| Input | 12 or 24V |
| Max Input | 50VDC, 20A |
| Max Charge/Load | 20A |
| Max Panel Size | 240W (12V) |
| Battery | 12V or 24V |
| Charge Control (12V) | ABSORPTION Gel: 14.2V AGM: 14.4V Wet: 14.7V EQUALISATION Gel: – AGM: 14.6V Wet: 14.8V Float: 13.8V |
| Charge Control (24V) | ABSORPTION Gel: 28.4V AGM: 28.8V Wet: 29.4V EQUALISATION Gel: – AGM: 29.2V Wet: 29.6V Float: 27.6V |
| Negative Switching | Yes |
| Approval | EMC |
| IP Rating | IP22 |
| Manufacturer | Projecta |
|---|
