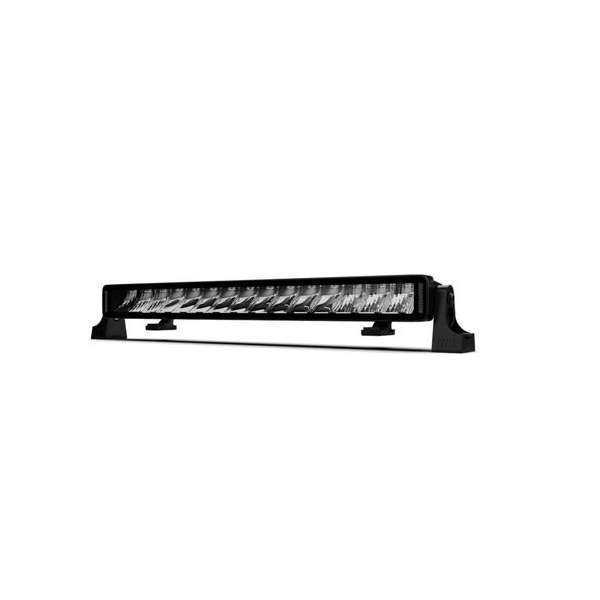

ROADVISION 10-30V 30" 249W (16500 LUMENS) COMBO BEAM LIGHTBAR
Brand:
RoadVision
Availability:
Call for Price & Availablity
Part No
RBL7030SC
Price: Login to see price...
ROADVISION 10-30V 30" 249W (16500 LUMENS) COMBO
Roadvision’s new Stealth Range of light bars represent the best performance from our new projector style lens in a light weight tough diecast aluminium housing. Available in single and dual row models from 7” to 52”, the smoked look lens and blackout mounting provide a low profile durable look producing up to 27,500lm of instant light output utilising Roadvision’s Thermal Management Technology.
The Stealth Series has been designed to deliver three unique performance characteristics with different combinations of distance or intensity suited to your main vehicle use and application:
- Long range slimline S40 Series reaches up to 917m @ 1 Lux and produces up to 14970lm.
- High intensity S52 Series reaches up to 812m @ 1 Lux and produces up to 19,436lm.
- The best of range and intensity from the S70 Series reaching up to 1118m @ 1 lux and producing up to 27,500lm.
- Low profile with smoked lens and blackout mounting hardware for a STEALTH on vehicle look
- Roadvision’s best-in-class Platinum Range, backed by a 7-year warranty
- Projector Beam Technology producing more power from a smaller package
- Single row light bar producing up to 27500lm of instant light output
- Available in 7” to 52” models
- Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Advanced Thermal Management Technology
- Light weight and tough die-cast aluminium housing & polycarbonate lens
- IP68 & IP69K protection
- 9 position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
SPECIFICATIONS
| Beam Type | Projector Combo 16 Driving / 44 Spot |
| Maximum Lumens | 16500lm |
| Maximum Beam Distance | 1857m |
| Maximum Watts | 249W |
| Light Source | 60x3 Watt Osram LED's |
| Current Draw Amps | 10.7~23.9A @ 13.8V |
| Voltage Input | 10-30V DC |
| Dimensions AxBxC | 815x67x70mm |
| Bar Length | 30" (815mm) |
| Wiring | 2 Pin ATP Plug |
| Maximum Lux @ 10m | 8624 Lux |
| Meters @ 1 Lux | 929m |
| Meters @ 0.5 Lux | 1857m |
| Manufacturer | RoadVision |
|---|
