Roadvision’s RB112 Series compact 360° high intensity beacons are at the forefront of automotive lighting technology….. Featuring state-of-the art LED technology, the REVOLVER Series of Roadvision LED beacons are specifically designed and engineered to not only meet, but exceed Australian and international regulations. With a tough Aluminium housing and impact resistant polycarbonate lens, the RB112 Series are built to last in even the toughest conditions. Featuring 32 SMD LED’s and with 10 selectable flash patterns – including single, double, triple, quad & simulated rotating – the RB112 Series are the perfect LED beacon for a wide range of industrial applications.
Trade Enquiries Only

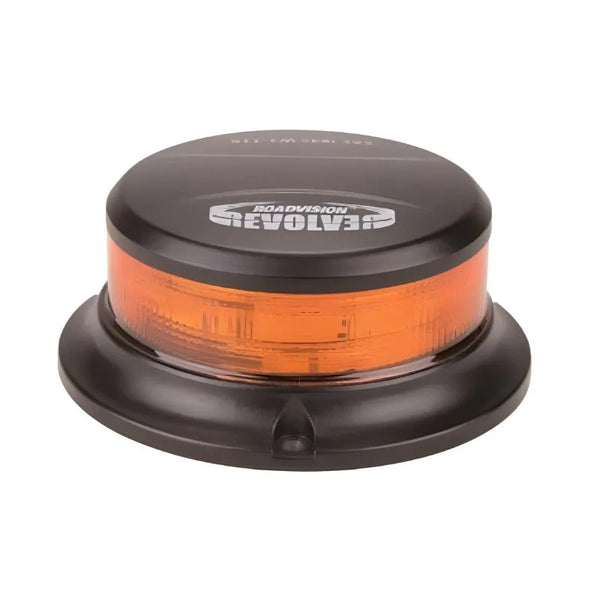

ROADVISION 10-30V LOW PROFILE AMBER BEACON WITH FIXED MOUNTING
Brand:
RoadVision
Availability:
Call for Price & Availablity
Part No
RB112Y
Price: Login to see price...
ROADVISION 10-30V LOW PROFILE AMBER BEACON WITH
- Compact low profile 10 function 360° high intensity beacons
- Single, double, triple, quad & simulated rotating flash patterns
- Multi-volt 10-30V input & low current draw
- 32 SMD LED’s produce 28W
- 100,000 hour rated LED lifespan
- Maintenance free solid state technology
- Tough polycarbonate lens & aluminium body
- Waterproof IP67 rated and vibration proof
- Compact low profile 112 x 48mm body
- Available in 3 hole fixed, magnetic or DIN pole mounts
- EMC, ECE R10 & SAE class 1 approved
FLASH PATTERNS
- Single (ECE/SAE) 480ms
- Single 800ms
- Double 400ms
- Double 800ms
- Triple 820ms
- Quad 820ms
- F&B Half 400ms
- F&B Half 800ms
- Rotated 800ms
- Rotated 400ms
SPECIFICATIONS
| Function | 10 Selectable Flash Patterns |
| Light Source | 32 SMD LED’s |
| Flash / Rotation Rate | 10 Flash Patterns |
| Dimensions | 112x48mm |
| Current Draw Amps | 1.9A @ 13.8V |
| Mounting Type | 3 Hole Fixed 103mm Centre to Centre |
| Wiring | 300mm Sheathed |
| Approvals | EMC Cispr25 Class 5 & SAE Class 1 |
| Manufacturer | RoadVision |
|---|
