QUIKCRIMP 14 - 30mm QUIKFLEX BRAIDED SLEEVING (100M ROLL)
Brand:
Quikcrimp
Availability:
Call for Price & Availablity
Part No
QF19BK-100
Price: Login to see price...

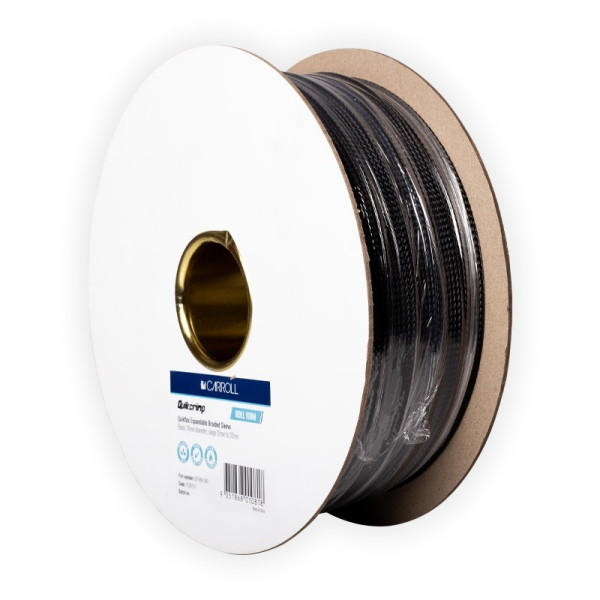

QUIKCRIMP 14 - 30mm QUIKFLEX BRAIDED SLEEVING
Quikflex Braided Sleeve is designed for automotive applications, providing protection for hydraulic hoses, tubing, and wiring harnesses. Made from lightweight PET monofilament, it offers durable abrasion protection. With a high working temperature of 150°C, flame retardant properties, is halogen-free, and an open weave construction. Quikflex can easily accommodate different loom sizes. It’s also convenient for threading cables through the weave, allowing you to ‘break out’ from the main loom.
Features
- Lightweight and flexible
- Excellent abrasion and cut-through resistance
- Highly flexible with a high tensile strength
- Resistant to most chemicals and solvents
- Operating temperature -50°C to 150°C
- Flammability rating UL94V2, VW-1
- Halogen Free
- ROHS compliant
Specifications
| Additional Description | Packaging Dimensions - 90mm (W) x 250mm (D) |
|---|---|
| Overall Dimensions | 18mm (W) x 100m (L) x 11.5mm (Inner Diameter) |
| Width (mm) | 18mm |
| Weight (g) | 1.3kg |
| Weight (Kg) | N/A |
| Brand Name | Carroll |
| Industry | Agricultural machinery, Automotive, Buses & Coaches, Construction & Mining Equipment, Trucks & Trailers |
| GTIN/Barcode | 9351868010818 |
| Material | PET monofilament |
| Colour | Black |
| Sold | Roll |
| EU RoHS Compliant | Yes |
| Max Operating Temperature (°c) | 150°C |
| Operating Temperature Range (C) | -50°C to 150°C |
| Manufacturer | Quikcrimp |
|---|
