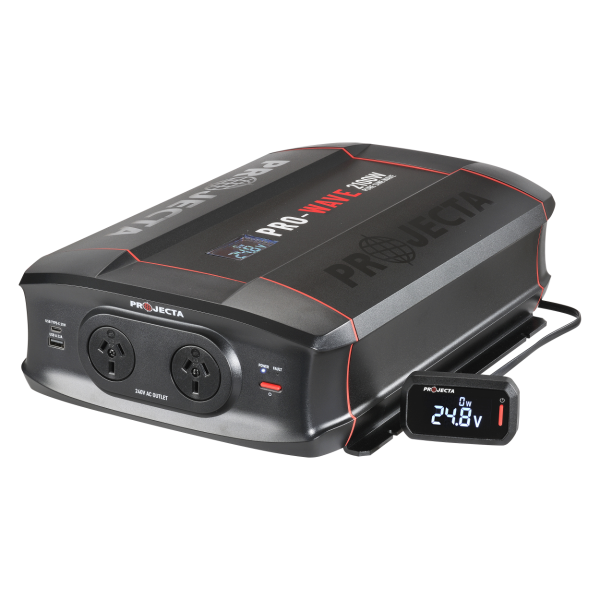

PROJECTA PRO-WAVE 24V 2100W PURE SINE WAVE INVERTER

DIGITAL DISPLAY
LED display provides information on battery voltage, power usage and load capacity

USB OUTPUT SOCKET
2.1A USB-A and 21W USB-C ports for charging most mobiles and portable devices

WIRING KIT
Battery lugs with 1100mm 35mm2 battery cable

APPROVED OUTPUT SOCKET
AS/NZS approved 240V sockets. Inverter designed to Australian standard AS4763

KEY SPECIFICATIONS

QUANTITY
1 x Inverter 1 x Remote

USB OUTPUT
USB-C 21W, USB-A 2.1A

OUTPUT POWER (W)
2100W Continuous, 2520W (120% surge ?10 minutes), 4200W (200% surge ?1 second)

OUTPUT
240VAC, 50Hz (Pure Sine Wave)

BATTERY ALARM
21V (±0.6V)

IDEAL BATTERY SIZE
70Ah and above

MINIMUM BATTERY SIZE
55Ah

RUN TIME BATTERY
500W on 25Ah Battery: 30 minutes

INPUT
12V DC Battery/Vehicle (11V–14.5VDC)

INPUT CURRENT
123A

INPUT CURRENT
103A

STANDBY CURRENT DRAW
<1.2A

COOLING FAN
Automatic Temperature and Load Controlled

THERMAL SHUTDOWN
65°C (±5°C)

INTERNAL FUSE
125A

RECOMMENDED EXTERNAL FUSE
200A

APPROVALS & SAFETY STANDARDS
Electrical Safety, EMC

RUN TIME GLOBE
100W Globe on 25Ah Battery: 10 hours

INVERTER CLASSIFICATION
Equipotentially Bonded (EPB)

EFFICIENCY
85%

SHUTDOWN
19.8V (±0.6V)

DIMENSIONS & WEIGHT

Dimensions
439 x 272 x 113mm

Weight
6.2kg

WARRANTY

Warranty
3 Year Warranty

What's in the box?

2100W 24V Pure Sine Wave Inverter

Remote Control
LCD display and remote control unit provides information on battery voltage and power usage.

Installation Hardware & Accessories
Battery lugs with 1100mm 35mm² battery cable, mounting Brackets for remote, screws, x2 Rubber Cable Lugs (Red+Black), x2 Battery Cables (Red+Black) 3M Tape, Additional Earthing Cable.

Instruction Manual
Step-by-step instructions and safety tips.
