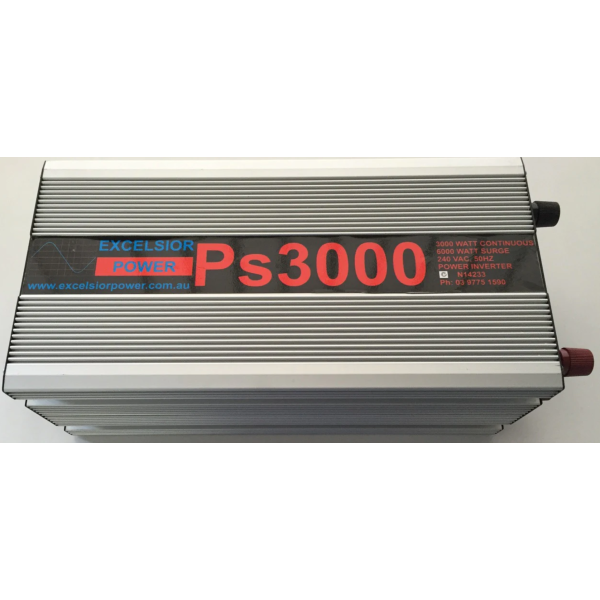

The Excelsior Power PSX3000/24 Inverter provides clean, silent 240 VAC power for your mains appliances from 24 volt battery power. The PSX series has extra protection for harsh environments as well as extra features such as remote control and indicators for vital parameters such as battery voltage, wattage and output voltage! The PSX3000/24 provides a pure sine-wave output, which is the cleanest power available for those applications that require the very cleanest & purest in power. They are microprocessor controlled and have full electronic fault protection. They also have a LCD digital display to show battery voltage, output voltage and wattage values, as well as LED indicators to indicate Power and Fault conditions. The unit also features a very low standby current to save power
WHY EXCELSIOR POWER INVERTERS?
PERFORMANCE
Excelsior Power Inverters offer superior performance than other inverters owing to very high efficiency & low standby power thanks to our design & use of the latest microprocessor control, semiconductors and components .
FEATURES
Our inverters have all the protection features; like Low & High Battery protection, Temperature & overload Protection, to keep your system healthy & maximize reliability.
ROCK SOLID
Our Inverters have been used in many applications, such as Industrial, commercial, Recreation and remote environments. When it's an Excelsior Inverter can be confident by our over 25 years experience!
SAFTEY
Excelsior Power Inverters achieve maximum safety via Excelsior's output Electrical Isolation for your piece of mind, unlike other inverters!
ROBUST
Excelsior Power Inverters have been developed for toughness & robustness to survive the harsh Australian conditions form our over 25 years experience & design.
SUPERIOR COOLING
Excelsior Inverters offer superior cooling via smart, multi mode cooling fan and finned case extrusion which maximizes surface cooling area.
USER FRIENDLY
Our inverters have power and fault indicators for easy user feedback and the PSX models also have multifunction Display and Remote controls with Indications and battery condition.
AUSTRALIAN STANDARDS
Excelsior Power Inverters comply with all the relevant Australian safety and electrical standards, including CE, EMC, SAA, etc.
|
Output power continuous: |
3000W |
Dimensions (mm): |
128 x 180w x 396d |
|
Output power intermittent: |
3300W |
Mass: |
5.6Kg |
|
Output power surge: |
6000W |
Battery high protection: |
Yes |
|
Input voltage: |
20-30V |
Battery low protection: |
Yes |
|
Standby current: |
0.8A |
Overload protection: |
Yes |
|
Output frequency select: |
50 Hz |
Over temp protection: |
Yes |
|
Output regulation: |
+/-5% |
Load fan: |
Yes |
|
Output waveform: |
Sine, <3%THD |
Output Power LED: |
Yes |
|
Efficiency: |
to 90% |
Fault LED: |
Yes |
|
Selectable demand start: |
No |
Audible alarm: |
Yes |
|
Output isolation: |
Yes |
Remote control: |
Yes |
|
Temperature: |
Error LED |
Input voltage: |
4 DIGIT LED |
|
USB Charger: |
Yes, 1 Amp |
Output frequency: |
No |
|
Load wattage: |
4 DIGIT LED |
Output Voltage: |
4 DIGIT LED |
