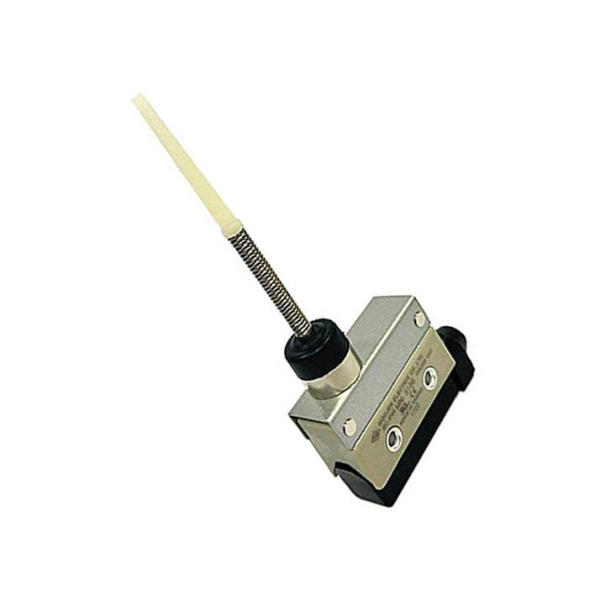

SPRING ARM MICRO SWITCH
Availability:
Call for Price & Availablity
Part No
MN5166
Price: Login to see price...
SPRING ARM MICRO SWITCH
- Side mount switches
- Momentary contacts
- Wide choice of heads and actuators
- Sealed actuators
- Completly sealed structure
- Plastic sealed construction
- Temperature range -15º C to +80º C
- 10A at 250V AC
- 0.5A at 125V DC
- 120 operations/min.
- Operating Speed 0.01mm to 50cm/sec (at the pin plunger)
- Operating Frequency 120 operations/min
- Vibration Malfunction durability: 10 to 55Hz; 1.5mm double amplitude
- Shock Mechanical durability: Approx 1km/sec² (approx 100 G's)
- Malfunction durability: Approx 300m/sec² (approx 30 G's)
- Operating Temperature -10°C to +80°C
- Service Life Mechanical: 10,000,000 operations (min)
- Electrical: 500,000 operations min (2A 110V AC)
- Humidity 95% RH max (at +200 to +300C)
- Electrical Contacts 1 CO 250V AC 10A / 125V DC 500mA (resistive)
- Degree of protection IP65
