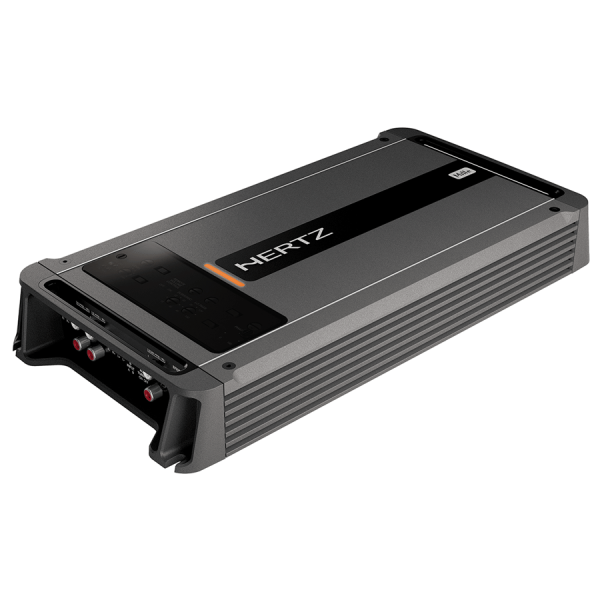

MILLE 1000W SINGLE CHANNEL AMPLIFIER

Brand: Hertz
Availability: 1
Part No
MLPOWER1

Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The powerful mono Hertzaudio car amplifier ML Power 1 (1000 W – stable at 1 Ω) is perfect to drive the Mille subwoofers.  The filters combination adopted for the Mille Power line is extremely flexible and ensures they can be used in any configuration. The active crossovers of MLPower 1 feature a 24 dB/Oct. adjustable slope Lo-Pass filter to adapt to every need. The control section, protected by a removable panel, can be accessed from the top for an effortless tuning.



General Specifications

Channels 1
Power supply voltage: 11÷15 VDC
Idling current: 2 A
Idling current when off: 0.04 mA
Consumption @ 1Ω, 14.4 VDC
(Max Musical Power)
83.5 A
Distorsion - THD (100 Hz @ 4Ω): 0.08 %
Bandwidth (-3 dB): 18 ÷ 500 Hz
S/N Ratio (A weighted @ 1 V) 105 dB
Damping factor (100 Hz @ 4Ω): 100
Pre-In sensitivity: 0.2 ÷ 5 V RMS
Pre-In impedance: 15 kΩ
Speaker-In sensitivity: 0.8 ÷ 20 V RMS
Speaker-In impedance: 470 Ω
Load impedance:
1 Ch

4 ÷ 1Ω
Remote In: 4 ÷ 15 VDC - 1 mA
ART™: Automatic Remote Turn-On/Off with Speaker-In
Fuse: 3 x 40 A
Max size (mm/inches): 170 x 349 x 46.70 / 6.69 x 13.74 x 1.84
Weight (kg/lb): 3.09 / 6.81
Adjustable Crossovers yes



INPUTS / FILTERS

Inputs: Pre IN / Speaker IN
Outputs: Pre OUT
Filters: Lo-pass 50 ÷ 500 Hz @ 24 dB/Oct
Phase: (continuous adjustment) 0 ÷ 180°
Subsonic: Hi-pass 18 ÷ 40 Hz @ 24 dB/Oct.
Remote SUB Volume: (-50 ÷ 6) dB



Output Power

CEA 2006-A RATINGS
RMS Power (4 Ω, ≤ 1 % THD+N, 14.4 V): 600 W x 1Ch
S/N Ratio (ref. 1 W output): 83,5 dBA
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
1 Ch 600 W x 1 (4Ω)
1 Ch 1000 W x 1 (2Ω)
1 Ch 1000 W x 1 (1Ω)
Total Power 1000 W



More Information
Manufacturer Hertz
