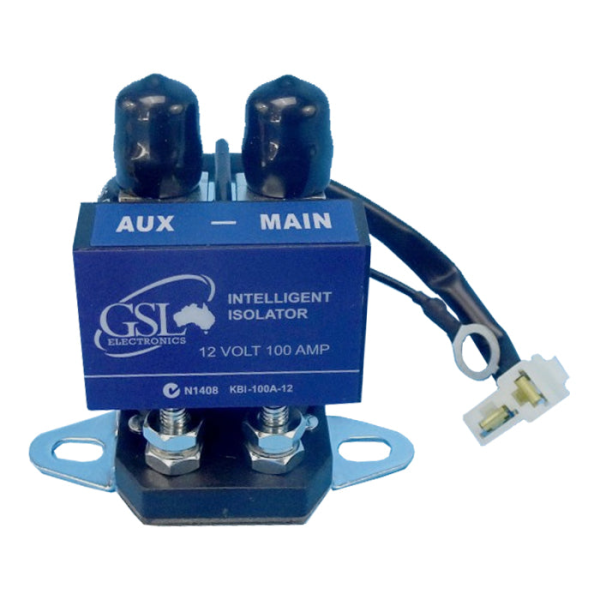

Gsl 12V 100 Amp Intelligent Solenoid Battery Isolator

Description

The GSL Smart Battery Isolator is a 100 amp dual battery isolation solenoid with LED indicators that can also be dash mounted.

The isolator is designed to maintain the main battery voltage in dual battery systems, whilst providing minimal voltage drop and spike protection.

Features

• GSL Electronic's battery isolator, the KBI-100A-12 has the lowest standby current draw GSL have ever produced.

  It features LEDs for operation and fault indications.

• Detects and indicates faulty or no auxiliary battery connection
• Detects and indicates under or over voltage on main battery
• Over voltage protection isolates auxiliary battery from damage
• Override function allows emergency jump start
• Cut In/Out voltage accuracy better than 0.05 Volts
• Simple installation with 2 mounting points
• Compact and light weight
• Alarm LED
• 2 year warranty.

Specifications

• Brand: GSL
• Measures L84mm x W77mm x H67mm.
• 12v Negative Earth.
• Charging System Suitability - 100 Amps.
• In Rush Current - 400 Amps.
• Connect Voltage - 13.2 VDC.
• Disconnect Voltage - 12.7 VDC.
• Delayed Start.
• Shipping Weight: 260 grams.
• Shipping Dimensions: 9 cm x 8 cm x 7 cm.
