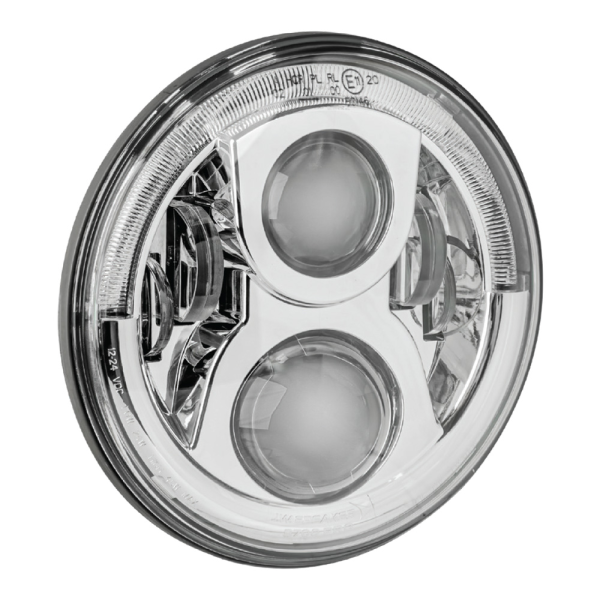

JW SPEAKER 12-24V 7" HIGH/LOW LED HEADLIGHT WITH DRL & CHROME INNER BEZEL
Availability:
Call for Price & Availablity
Part No
0556951
Price: Login to see price...
SPECIFICATIONS
| Description | 12-24V ECE LHT High & Low Beam Headlight with DRL - Chrome |
|---|---|
| Input Voltage | 12-24V DC |
| Operating Voltage | 9-32V DC |
| Current Draw | 3.60A @ 12V DC (High Beam) 2.00A @ 12V DC (Low Beam) 1.80A @ 24V DC (High Beam) 1.10A @ 24V DC (Low Beam) 1.60A @ 12V DC (DRL) 0.80A @ 24V DC (DRL) 0.16A @ 12V DC (Front Position) 0.10A @ 24V DC (Front Position) |
| IP Rating | IP67 |
| Height | 176.53 mm / 6.95 in |
| Width | 176.53 mm / 6.95 in |
| Depth | 99.82 mm / 3.93 in |
| Shape | Round |
| Outer Lens Material | Polycarbonate |
| Outer Lens Color | Clear |
| Housing Material | Aluminum |
| Housing Color | Gray |
| Bezel Color | Chrome |
| Retrofits | 2D1 "PAR56" or 7" Round Headlights |
| Minimum Operating Temperature |
-40 °C / -40 °F |
| Maximum Operating Temperature |
65 °C / 149 °F |
| Connector or Wiring | H4 |
| Mating Connector | H4 AMP#172615-2 |
| Product Weight | 2.31 lbs / 1.05 kgs |
