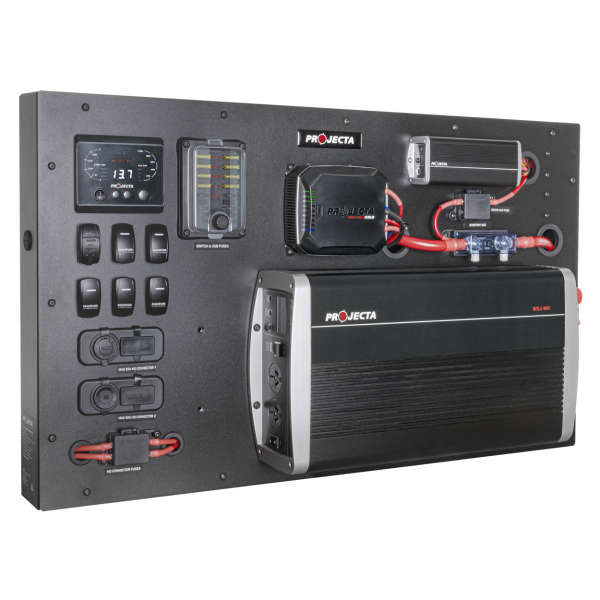

PROJECTA 12V 25 AMP POWER MANAGEMENT BOARD W/ 2000W INVERTER

Utilising the latest premium ‘Intelli’ power management equipment, this board features the multi-chemistry 25Amp DC to DC dual battery charger, 2000W pure sine wave inverter and more. This sophisticated system is ideal for ute canopies and motor home applications. Pre-built, these all-in-one units enable quick and easy installation.

BATTERY MONITOR BM500-BT
An intelligent and compact battery meter ideal for monitoring SOC% and general status

SOCKETS & SWITCH PANEL
Power and charge 12V devices with 3.1A USB sockets, a merit socket and an accessory socket. 5 switches are included to control all your connections

2000W PURE SINE WAVE INVERTER (IP2000)
Converts 12V power to 240V to allow the use of devices such as TVs through to the high power demands of power tools

DC-DC CHARGER (IDC25X)
Providing a 3 or 5 stage charge simultaneously from both solar and alternator inputs, this dual battery management system is ideal for many applications

KEY SPECIFICATIONS

CONTAINS PART NUMBER 1
IDC25X

CONTAINS PART NUMBER 2
BM500-BT

FUSE BOX
Load: 25A per circuit
Circuits: 10-way ATS Blade Fuses

SOCKETS AND SWITCHES
USB Socket Output: 5V, 3.1A
Merit Socket Amp Rating: 16A at 12V, 8A at 24V
Cigarette Socket Amp Rating: 20A at 12V, 10A at 24V
Switches Amp Rating: 20A at 12V

HEAVY DUTY CONNECTORS
Amp Rating: 50A
Cable Suitability: Suits cable size 8mm² (8 B&S)

DIMENSIONS
828 × 493 × 190 mm

WARRANTY
5 Year Warranty
