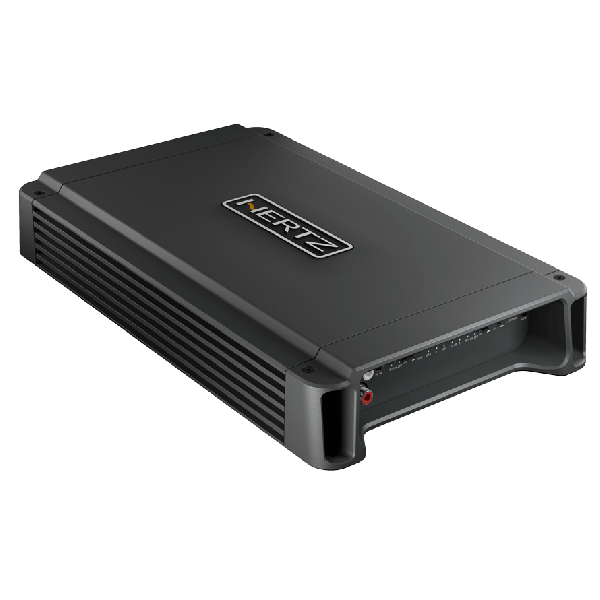

HERTZ SINGLE CHANNEL AMPLIFIER
Brand:
Hertz
Availability:
1
Part No
HCP1DK
Price: Login to see price...
General Specs
| Channels | 1 |
| POWER SUPPLY | |
| Power supply voltage / fuse: | 11 ÷ 15 VDC / 3 x 30 A |
| Idling current (power ON/OFF): | 0.8 A / 1 mA |
| Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): | 45 A |
| Remote In: | 7 ÷ 15 VDC - 1 mA |
| ART: | Automatic Remote Turn-On/Off with Speaker-In |
| AMPLIFIER STAGE | |
| Distorsion - THD (100 Hz @ 4 Ω) | 0.25 % |
| Bandwidth: | 10 ÷ 500 Hz |
| S/N Ratio (A weighted @ 1 V): | 100 dB |
| Damping factor (100 Hz @ 4 Ω): | > 100 |
| Pre-In sensitivity: | 0.2 ÷ 5 VRMS |
| Speaker-In sensitivity: | 0.8 ÷ 20 VRMS |
| Load impedance (MIN): | 2 Ω |
| Max size (mm / in.): | 315 x 190 x 50 / 12.40 x 7.48 x 1.97 |
| Weight (kg / lb.): | |
| Adjustable Crossovers | yes |
INPUTS / FILTERS
| INPUTS: | PRE IN / SPEAKER IN |
| Pre out Hi-Pass: | 50 ÷ 250 Hz @ 12 dB/Oct |
| Filters FULL: | Yes |
| Lo-Pass: | 50 ÷ 250 Hz @ 24 dB/Oct. |
| SUBSONIC (on/off): | 25 Hz @ 24 dB/Oct |
| BOOST 50 Hz (adjust) | (0 ÷ 6) dB |
| PHASE (adjust): | (0 ÷ 180) deg |
| Remote Volume Control (adjust): | (-50 ÷ 6) dB |
Output Power
| Output Power (RMS) @ 14.4 VDC, THD 1% | |
| 1 Ch: | 740 W x 1 (4 Ω) |
| 1 Ch: | 1240 W x 1 (2 Ω) |
| CEA 2006-A Ratings: | |
| RMS Power (4Ω, ≤1 % THD + N, 14.4 V): | 600 W x 1 Ch |
| S/N Ratio (ref. 1 W output): | 80 dBA |
| Total Power | 2480 W |
| Manufacturer | Hertz |
|---|
