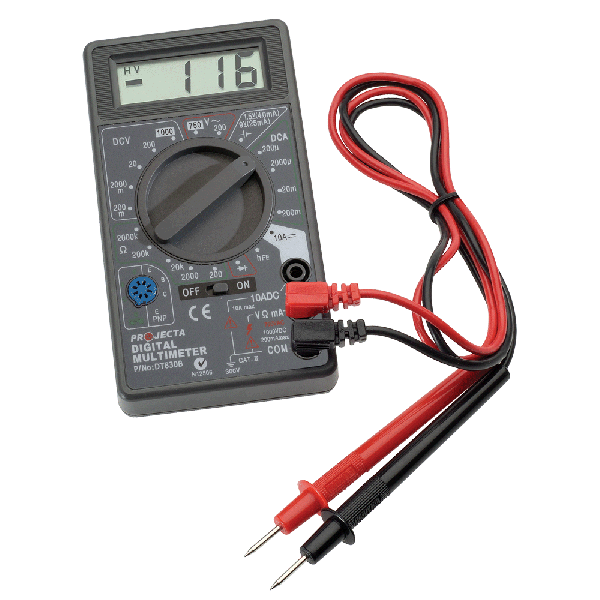

PART NO DT830B BLISTER-1 A convenient and reliable entry level multimeter with simple rotary switch to quickly select the function and range to be measured.
FEATURES
Polarity | Auto indication (-) |
Voltage | DCV: 200mV, 2000mV, 20V, 200V & 1000V ACV: 200V & 750V (45–450Hz) |
Current | DCA: 200μA, 2000μA, 20mA, 2000mA & 10A |
Resistance | 200 Ohm, 2000 Ohm, 20k Ohm, 200k Ohm & 2000k Ohm |
Dry Cell Battery Check | 1.5V (AAA, AA, C & D) & 9V |
Diode Test | 1mA current for forward Vdrop |
Transistor Test | hFE (0–1000) @ 3.2Vce |
Manufacturer | Projecta |
---|
