HERTZ 12" 250W SUBWOOFER WITH ENCLOSURE BOX
Brand:
Hertz
Availability:
Call for Price & Availability
Part No
DBX30.3
Price: Login to see price...

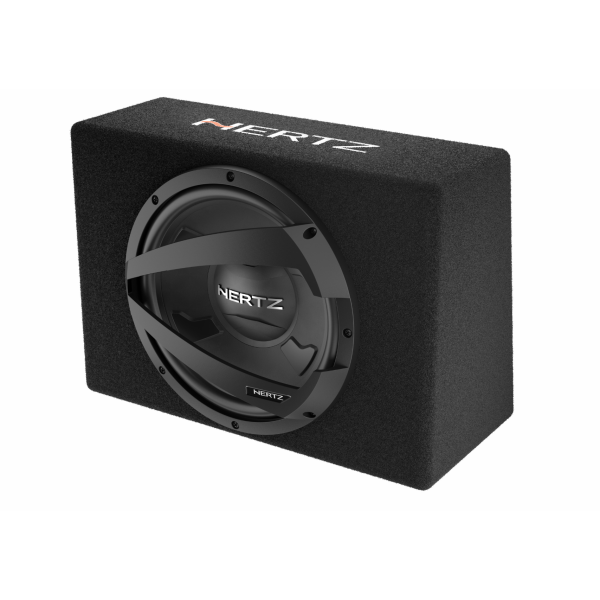

HERTZ 12" 250W SUBWOOFER WITH ENCLOSURE BOX
The DBX 30.3 is a car audio subwoofer box designed to enhance the audio system performance in the low range frequencies, optimizing the spaces and ensuring a quick, not too invasive installation. The subwoofer unit, which is the DS sub, provides a punching, dynamic, surrounding bass. The very thick MDF enclosure, thanks to its rigid and stable structure, doesn't affect the acoustics. The rear slanted panel fulfils two important functions: it reduces back-wave reflections and eases the installation.
Technical Specs
| Nominal diameter | 300 mm |
| Impedance | 4 Ohm |
| Power Handling - Peak | 1000 W |
| Power Handling - Continuous | 250 W |
| Sensitivity | 91 dB |
| Frequency Response | 28 ÷ 300 Hz |
| Voice Coil Ø | 38 mm (1.5 in) |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Cone Material | POLYPROPYLENE WITH MICA INJECTION |
| Xmech | 16 mm |
Electric-acoustic Specs
| D | 258 mm |
| Re | 3.3 Ohm |
| Fs | 32 Hz |
| Le | 2.2 mH |
| Vas | 70 l |
| Mms | 133 g |
| Cms | 0.18 mm/N |
| BL | 11.2 T•m |
| Qts | 0.62 |
| Qms | 5.14 |
| Reference Efficiency | 91 |
Features
1. Very high efficiency subwoofer system with superior power handling.
2. Very thick MDF cabinet construction, strong and inert.
3. Angled rear wall, increases damping of resonances and provides easy fitment
in any application.
4. High current plated terminals.
5. Polypropylene membrane stiffened with mineral powders.
6. High excursion butyl rubber surround.
7. Deep ribbing on the surface of the cone increase rigidity.
