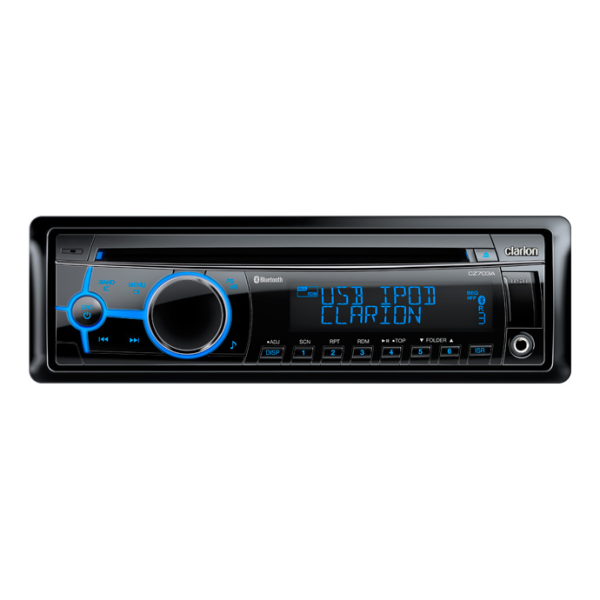

Clarion CD/mp3/wma/USB AM/FM Player (I-Pod/I-Phone Compatible) With Parrot Bluetooth
Brand:
Clarion
Availability:
Call for Price & Availability
Part No
CZ703A
Price: Login to see price...
Clarion CD/mp3/wma/USB AM/FM Player (I-Pod/I-Phone Compatible) With Parrot Bluetooth
Clarion CD/mp3/wma/USB AM/FM Player (I-Pod/I-Phone Compatible) With Parrot Bluetooth
FEATURES
- CD/USB/MP3/WMA playback
- 728 variable colour lighting buttons and display
- Built-in Parrot Bluetooth interface (HFP, HSP, A2DP, AVRCP, PBAP)
- Built-in Microphone and external microphone ready with optional RCB199
- Digital radio ready (optional DAB302E)
- 3.5 mm audio auxiliary input (front)
- Front and Rear USB port with iPod direct connect capabilities (optional CCA750 iPod interface cable)
- 4 × 50 W MOS-FET power amplifier
- Digital Time Alignment control and 3-way crossover
- Subwoofer level control
- Built-in Low-pass / High-pass filters
- Beat EQ Plus for sound adjustment
- 5V / 6-channel audio pre-out
- OEM steering wheel remote ready
- Wireless remote control included
SPECIFICATIONS
| TUNER SECTION | |
|---|---|
| Frequency bands | |
| FM: (MHz) 0.05MHz steps | 87.5 to 108 |
| AM: (kHz) 9 kHz steps | 531 to 1,629 |
| FM usable sensitivity (dBf) | 8 |
| FM 50 dB quieting sensitivity (dBf) | 17 |
| FM alternate channel selectivity (dB) | 60 |
| FM stereo separation @1 kHz (dB) | 30 |
| FM stereo freq. resp. @ ±3 dB (Hz) | 30 to 15,000 |
| CD SECTION | |
| S/N ratio (dB) | 94 |
| Frequency response (Hz) | 20 to 20,000 |
| Dynamic range (dB) | 94 |
| Harmonic distortion (%) | 0.1 |
| AUDIO SECTION | |
| Power output (DIN45324, +B = 14.4 V) | 4 × 25W |
| GENERAL | |
| Dimensions (W × H × D), mm | 188 × 58 × 190 |
| Remote control (W × H × D), mm | 43 × 11 × 113 |
| Weight (kg) | 1.4 |
| Power consumption: less than | 15 A |
| Speaker impedance | 4Ω (4Ω to 8Ω allowable) |
| Manufacturer | Clarion |
|---|
