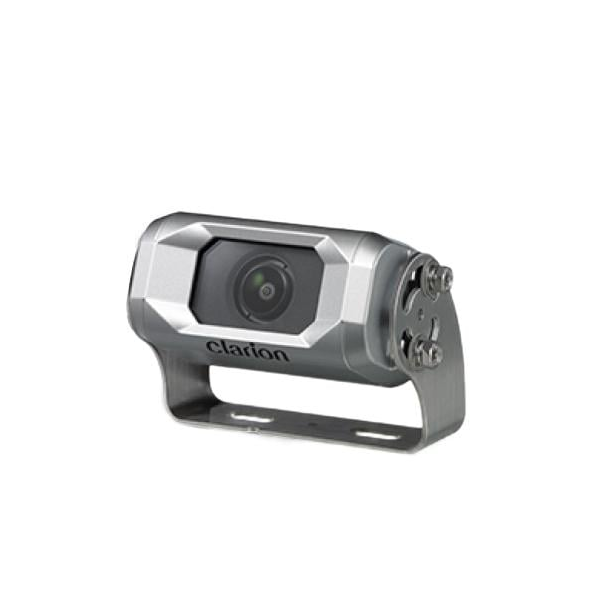

CLARION HEAVY DUTY CMOS TRUE IMAGE WIDE ANGLE REVERSE CAMERA

Brand: Clarion
Availability: 1
Part No
CC6601EA

The Clarion CC6601E is a heavy duty automotive camera designed for the commercial & industrial applications. The high quality CMOS sensor combined with dedicated lenses which are designed with the latest technology to reduce distortion and ghosting; deliver crisp, clear, high-quality camera images. With a 118 degree (horizontal) lens angle, this camera facilitates clear observation at the rear of the vehicle from edge to edge with minimum distortion. It also features a protective front glass that helps keep dirt and snow off the lens to assure image quality, as well as preventing scratching when the camera is cleaned. Surpassing IP69K, the camera is housed in a durable die cast aluminium body and comes supplied with a protective cover and bracket.

  • Note:
    • Compatible with Clarion Commercial display monitors only.
    • Clarion Commercial camera connection cable is required when installing this camera, sold separately: CCA791: 5M Length / CCA793: 10M Length / CCA795: 15M Length / CCA797: 20M Length


Features

  • High performance CMOS sensor for clear vision
  • 118 Degree (horizontal) wide angle lens minimizes blind spots
  • Dedicated lenses designed to reduce distortion and ghosting
  • True image produces opposite right / left orientation compared to a rear view mirror
  • Protective front glass that helps keep dirt and snow off the lens
  • IP69K dustproof / waterproof, ideal for commercial & industrial applications
  • -30C to +70C operating range, will withstand extreme temperatures
  • 10G vibration rating, can be installed on industrial machines
  • Comes supplied with a protective cover and bracket
  • Cylindrical shape minimises the required mounting space
  • Simple to install, using one touch locking connectors


Specifications

  • Number of Pixels: 330,000
  • View Angle (horizontal / vertical.): 118 / 98 Degree
  • Image Sensor: CMOS
  • Low Light Rating (LUX) : 1 (at 50 IRE)
  • Operating Temperature Range: -30C to +70C
  • Vibration Rating (G-force): 10G
  • Size ( WxHxD mm): 77 x 38 x 51.4 (including connector protrusion)
  • Weight: Approx. 140g
  • Waterproof Capability : IP69K
  • Included Accessories: Protective cover & bracket
  • Compatible Camera Cables (required for installation, sold separately):
    • CCA791: 5M Length
    • CCA793: 10M Length
    • CCA795: 15M Length
    • CCA797: 20M Length
  • Compatible Extension Cables (works with the Camera Cable, does not replace the Camera Cable, sold separately):
    • CCA799: 0.9M Length
    • CCA800: 5M Length
    • CCA801: 10M Length
  • Note:
    • Compatible with Clarion Commercial display monitors only.
    • Clarion Commercial camera connection cable is required when installing this camera, sold separately: CCA791: 5M Length / CCA793: 10M Length / CCA795: 15M Length / CCA797: 20M Length
