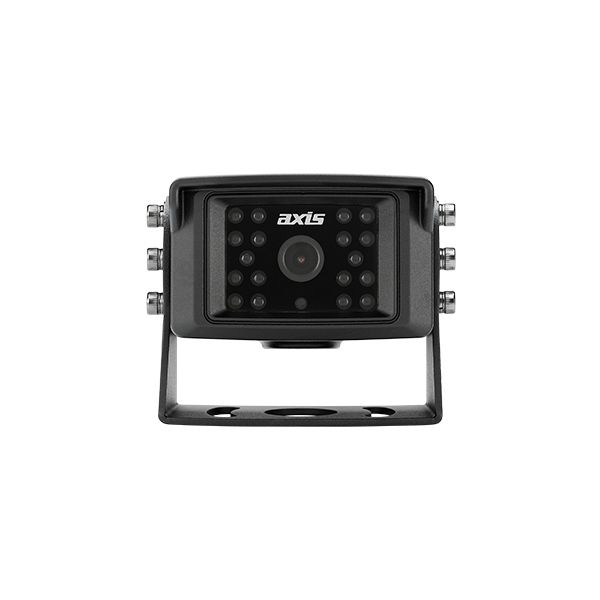

Axis Heavy Duty 120 Degree Reverse Camera With Night Vision

The CC10 Series 3 is a heavy duty CCD weatherproof wide range 8-50V rearview camera. It connects easily with LCD monitors and offers clear image so that drivers can have an enhanced view of their surroundings when reversing.

SERIES 3
– Image Device: 1/3” Nextchip NVH 2040 HIgh-Band CCD
– Image Sensor: SONY ICX639XK
– Diagonal Viewing Angle: 130°
– Horizontal Viewing Angle: 90°
– Signal System: PAL
– Effective Pixels: 752H x 582V
– Sync System: Internal
– Resolution: 600 TV Lines
– Lens: 4 x Full Glass
– Anti Dust & Water Coated Glass
– Orientation: Mirror/Normal (Selectable)
– Guidelines: Selectable On/Off
– Night Vision: Yes, 18 LED
– Illumination: 0.1 Lux with IR on
– Ingress Protection: IP67
– Integrated Microphone: Yes
– Operating Temp: -20 to 70°
– Power Consumption: 90-300mA
– Dimensions: 77W x 52H x 69D mm (Excluding Bracket) – Connection: Terminated 4 Pin Male
– Power Supply: 8-50V DC

INCLUDED
– Installation Manual
– 15m 4 Pin (Male) to 4 Pin (Female) Extension Cable
– Mounting Bracket
