Aerpro 1060mm 7.5dB Broomstick UHF Aerial With Heavy Duty Spring Base

Brand: Aerpro
Availability: 1
Part No
CBA5T1

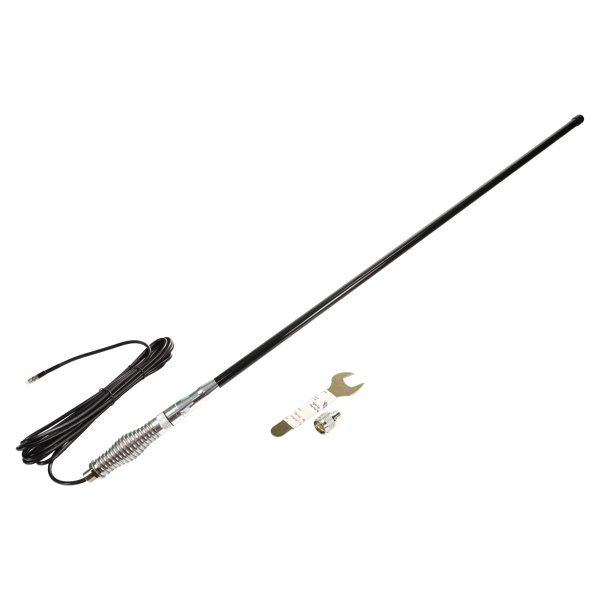

Aerpro 1060mm 7.5dB Broomstick UHF Aerial With Heavy Duty Spring Base

Description

The Aerpro CBA5T1 7.5dBi 477MHz Black Radome UHF Antenna is compatible with all brands of 477MHz UHF CB Radios in Australia and New Zealand. With 7.5dBi gain, this antenna is best suited for long range communication covering wide open spaces such as deserts, plains and low density woodlands as it produces a much longer but flatter UHF signal compared to lower gain antennas. The benefits of the antenna is the long distances it can cover however it is also means it can be susceptible to interference from obstructions in its line of sight. The 1040mm length antenna is encased in a high quality fibreglass tube and secured to a medium duty stainless steel spring. Due to its heavy duty design, weight and height, the CBA5T1 is recommended to be installed on the bullbar of the vehicle, making it suitable for trucks and 4WDs. The antenna is ground independent so it will maintain a stable radiation pattern. The elevated feed design helps raise the radiation pattern above the vehicle roof and other obstructions to ensure high performance when mounted on a bullbar. It is fitted with 4.7 metre RG58 coaxial cable which is pre-terminated with an FME connector making it easy to install through the firewall grommet in vehicles. An FME to UHF PL259 screw on adaptor is also included as well as a mounting spanner for hassle-free installation. Built sturdy for the Australian outback, the CBA5T1 is the perfect antenna when you need to communicate out in the middle of the desert or the open plains of the outback.



Features

  • Suitable for use with all 477 MHz UHF CB Radios in Australia and New Zealand
  • 7.5dBi Gain, has a long elliptical radiation pattern suitable for long range communication
  • Suitable for use in areas with minimal obstructions such as open plains, deserts and low density woodlands
  • Recommended for bullbar installation, making it suitable for trucks and 4WDs
  • 1040mm length high quality black fibreglass tube protects the antenna from external elements
  • Medium duty stainless steel spring reduces vibrations caused by the vehicle and driving conditions
  • Elevated feed and ground independent design for maintaining a stable radiation pattern
  • 4.7 metre RG58 coaxial cable, insulated to reduce signal interference
  • FME Female connector, fitted to cable for ease of installing through the firewall grommet in vehicle
  • FME Male to PL259 Male adaptor included, for solder free installation
  • Installation spanner included, no additional tools required



Specs

  • Frequency: 477MHz
  • Gain: 7.5dBi
  • Main Colour: Black
  • Ground Independent: Yes
  • Elevated Feed: Yes
  • Total Length: 1040mm
  • Mast Length: 850mm
  • Mast Width: 16mm
  • Mast Type: Fibreglass Radome
  • Spring Type: Medium Duty Stainless Steel
  • Antenna Mounting Thread Size: 16mm
  • Mast Mounting Thread Size: N/A
  • Cable Type: RG58 Terminated with Female FME
  • Cable Length: 4.7 Metre (approx)
  • Included Accessories:
    • FME to PL259 Adaptor
    • Mounting Nut
    • Installation Spanner
