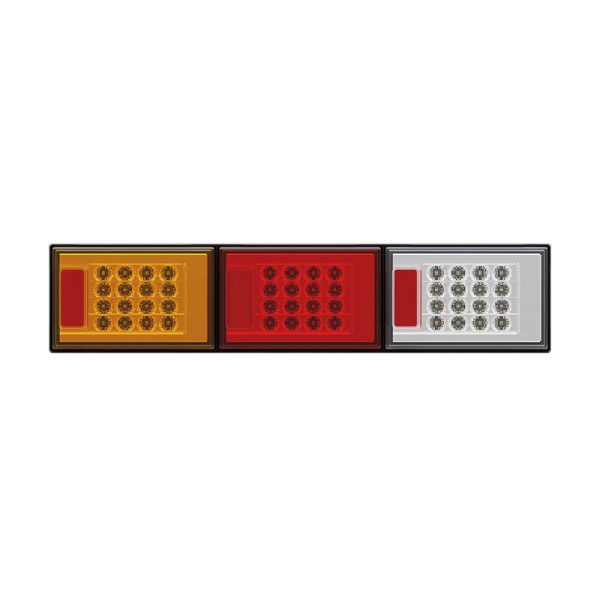

ROADVISION’s BR602 Series LED jumbo combination lamps are the ultimate heavy-duty lighting solution for trucks and trailers, now with a refreshed design and enhanced styling. Featuring Stop, Tail, Indicator, Reflector, and optional Reverse functions all in one robust unit, the BR602 Series delivers maximum functionality without compromise. Engineered with maintenance-free LED technology, these lamps offer superior visibility and safety, while consuming only a fraction of the power of traditional incandescent lights. Built tough for demanding environments, the BR602 features unbreakable polycarbonate lenses and a rugged, high-impact ABS housing that is fully sealed against dust and water ingress. Rated to a 100,000-hour LED lifespan, the BR602 Series is a true fit-and-forget solution, ideal for those who demand reliability, performance, and durability in every kilometre.
| Input Voltage | 10-30 VDC |
| Number of LEDS | Indicator - 16 LEDs Stop/Tail - 16 LEDs Reverse - 16 LEDs |
| Current Draw @ 13.8V | Ind - 0.11A Stop - 0.11A Tail - 0.02A Rev - 0.11A @ 13.8V |
| Lens Construction | Polycarbonate |
| Housing Construction | High Impact ABS |
| Mounting Hole Centres | 501mm & 325mm |
| Overall Dimensions | 604 x 132 x 46mm |
| Cable Length | 300mm Tinned Copper |
| CTA Approval | CTA-061849 |
| Wiring | Earth - White Stop - Red Tail - Brown Indicator - Yellow Reverse - Black |
| Manufacturer | RoadVision |
|---|
