Redarc 9-32V Input 24V Output 20 Amp Dc - Dc 3 Stage Battery Charger With Mppt Solar Regulator

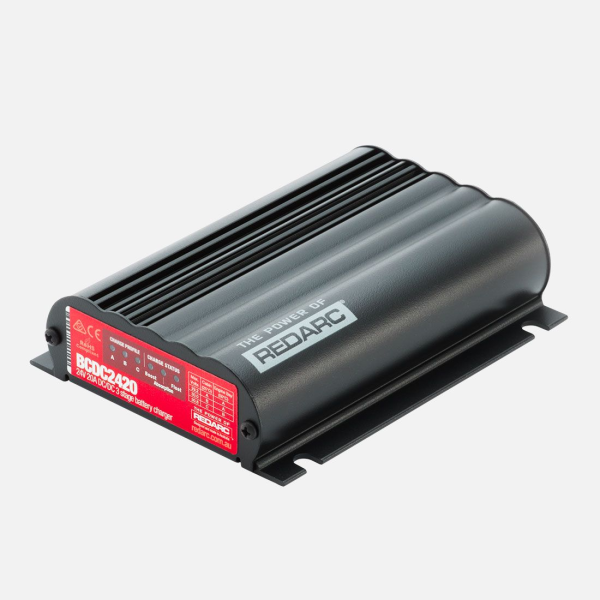

The REDARC BCDC2420 battery charger is a 24 Volt 20 Amp, three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge any commonly used automotive 24V battery system to an optimal level with chemistry specific battery charging algorithms.
Fully potted and sealed, this DC-DC charger is perfect for under bonnet installations to withstand heat, water, dust and vibration to deliver perfect performance every time.
The BCDC2420 features a multi-stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.
The BCDC2420 features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.
Features
Input Charge | Vehicle or solar |
Installation Type | In-cabin or under bonnet |
Input (Operating) Voltage | 9 - 32VDC |
Output System Voltage | 24VDC |
Max Charging Voltage | 30.6V |
Output Current Rating | 20A |
Input Fuse Rating | 50A |
Output Fuse Rating | 30A |
Standby Current Draw | <50mA |
Output Power | 600W |
Dimensions | 150 x 120 x 37mm |
Weight | 0.68kg |
Type Approval | E and CE |
Manufacturer | Redarc |
---|---|
Voltage | 24V |
