AERPRO 6.8" MULTIMEDIA RECEIVER TO SUIT TOYOTA HILUX 2014
Brand:
Aerpro
Availability:
Call for Price & Availability
Part No
AX9026K
Price: Login to see price...

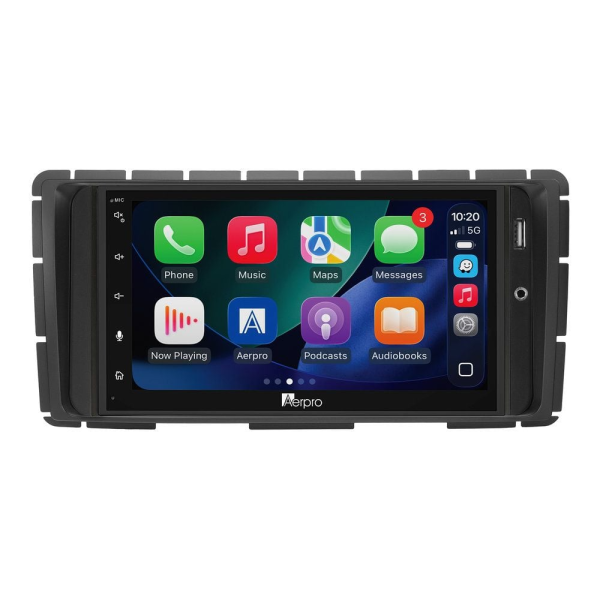

AERPRO 6.8" MULTIMEDIA RECEIVER TO SUIT TOYOTA
The Aerpro AX9026K 6.8" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Toyota Hilux (2014) vehicles. Featuring a vibrant 6.8" capacitive touchscreen display with a crisp 1024x600 resolution, this Multimedia Receiver supports Apple CarPlay and Android Auto wirelessly or wired, built-in Bluetooth V5 for hands-free phone calls and wireless audio streaming, dual rear USB inputs and an AM/FM radio tuner with RDS. Sound quality is superb with 4 x 50W max output, 13-band graphic EQ, time alignment and low-pass filter capabilities, and amplifiers can be added via the 4V / 6 RCA Preouts (Front/Rear/Subwoofer). The kit includes a Vehicle Specific Installation Kit designed specifically for Hilux 2014 vehicles, containing a blackblack facia kit, plastic mounting brackets, steering wheel control interface, factory camera harness, USB & AUX retention harness, antenna adapter and universal SWC patch lead. A 720P AHD Surface Mount Camera is also included, delivering high definition picture quality with a 150 degree field of view, optional parking guidelines and IP67 rating.
Supplied as a complete Head Unit Upgrade Kit, the Aerpro AX9026K includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls.
Important Information:
- Head Unit Upgrade Kits can vary between vehicle models
- This head unit is sold as a kit which includes:
- Aerpro 6.8" Multimedia Receiver with Wireless CarPlay and Android Auto
- Vehicle Specific Installation Kit
- 720P AHD Surface Mount Camera
Features
- Complete Head Unit Upgrade Kit: Includes all the parts required to complete the installation and retain important vehicle features for Toyota Hilux (2014).
- Vehicle Feature Retention: Retains steering wheel controls, reverse camera, USB & AUX when applicable.
- Vibrant 6.8" Capacitive Touchscreen Display: Crisp 1024x600 resolution with smooth, responsive control for easy navigation of maps, media, and menus.
- Wireless Apple CarPlay & Android Auto: Instantly access maps, music, calls, and messages without plugging in your phone, or connect via USB for wired operation and charging.
- Bluetooth Hands-Free Calling & Audio Streaming: Bluetooth V5 with HD Voice support, internal and external microphone options, and full phonebook and audio streaming capability.
- High-Power Audio with Advanced Tuning: 4 x 50W Max output, 4V / 6 RCA Preouts (Front/Rear/Subwoofer), 13-band EQ, time alignment, and subwoofer control for clear, powerful sound.
- 720P AHD Surface Mount Camera Included: High definition picture quality with a 150 degree field of view, optional parking guidelines and IP67 rating — mountable as a front, rear or reverse camera.
- Dual Camera Inputs (AHD 720P Compatible): Connect the included reverse camera plus an additional front or towing camera for improved visibility and confidence.
- AM/FM Tuner with RDS: 18 FM and 12 AM presets for all your broadcast preferences.
- USB Media Playback Support: Play music, videos, and photos directly from a USB drive in popular file formats (MP3 / MP4 / MKV / FLAC / Xvid).
- Multi-Colour Key Illumination: Customisable 6-colour button lighting to match your vehicle's interior.
Specifications
Aerpro 6.8" Multimedia Receiver Specifications:
- LCD Display:
- Size: 6.8"
- Resolution: 1024x600
- Touch Screen: Capacitive
- OS System: Linux
- DIN Size: 2 DIN Body (Double DIN)
- Power Output:
- MAX Power (4 Ohm): 4CH x 50W
- Media Playback: MP3 / MP4 / MKV / FLAC / Xvid
- Device Ports:
- USB1 (Rear): Apple CarPlay & Android Auto with Charging Function – 5V / 1.5A
- USB2 (Rear): Media with Charging Function – 5V / 1.5A
- USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
- Rear A/V Input (RCA Type – 3pcs): Yes
- Composite Video Output: Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Second Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V5
- Microphone: Internal + External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile: HFP 1.6 (HD Voice)
- Tuner:
- AM/FM (# of Presets): AM 12 / FM 18
- FM Frequency Span (MHz): 87.5–108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 522–1710KHz (9KHz Step)
- RDS: Yes
- RCA Preamp Outputs:
- RCA Preamp Output: 4V / 6 RCA Preouts (Front/Rear/Subwoofer)
- Subwoofer Level Control: Yes
- Preamp Voltage: 4V p-p
- Tone Control:
- 13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
- Loudness: Yes
- LPF – Frequencies (Sub): Yes
- Preset EQs: 6+2 Custom
- Time Alignment: Yes
- Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)
- Inclusions:
- 6.8" Multimedia Double DIN Head Unit
- Double DIN Metal Frame & Mounting Hardware
- Head Unit Plastic Trim
- Wiring Harness with ISO Connection
- 3 Wire Learning SWC Lead
- External Microphone with Mount
- GPS Antenna with Adhesive Pad
- QR Digital Manual Leaflet
Vehicle Specific Installation Kit Specifications:
- Inclusions:
- Facia Kit (Black)
- Steering Wheel Control Interface
- Reverse Camera Retention Harness
- USB Retention Harness
- AUX Retention Harness
- Antenna Adapter
- Universal Patch Lead
AHD Camera Specifications:
- Inclusions:
- 720P AHD Surface Mount Camera (wired)
- 6m of Video Cable (RCA) with in-line Reverse Trigger
- Mount Type: Surface Mount
- Camera Type: Front, Rear Or Reverse
- Image Sensor: Sony 225, 1/3 CMOS AHD
- Lens Angle: 150 Degree
Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- This head unit is sold as a kit which includes:
- Aerpro 6.8" Multimedia Receiver with Wireless CarPlay and Android Auto
- Vehicle Specific Installation Kit
- 720P AHD Surface Mount Camera
| Manufacturer | Aerpro |
|---|
