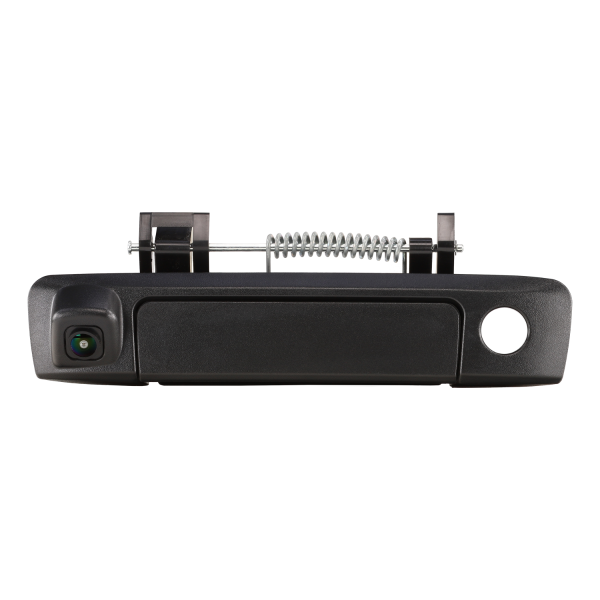

AERPRO TAILGATE HANDLE CAMERA TO SUIT FORD RANGER / MAZDA BT-50

The Aerpro APC22 is a vehicle specific tailgate handle reverse camera designed to suit Ford Ranger / Mazda BT-50 models (2012-2021). Replacing the factory tailgate handle, it provides a clean OEM style installation without the need to drill additional holes into the vehicle.

Designed specifically to assist with reversing and parking, the APC22 delivers a clear rear view with a 105° diagonal viewing angle that helps reduce blind spots behind the vehicle. The camera also features selectable parking guidelines that provide helpful visual reference when manoeuvring into tight spaces. These guidelines can be enabled or disabled during installation to suit the driver's preference.

Built to handle harsh automotive environments, the APC22 features a durable ABS housing and an IP68 waterproof rating, protecting it from dust, dirt, and water exposure. With an operating temperature range of -30°C to +80°C, it performs reliably in both extreme heat and cold conditions.

The camera supports AHD 720P or CVBS video output, selectable via loop wire, allowing compatibility with a wide range of aftermarket head units and Aerpro Advanced Safety Vision monitors. Included with the camera is a heavy duty 10 metre video cable with 4-pin heavy duty connectors, along with an adapter to convert the 4-pin connection to RCA for easy integration with most aftermarket displays.

IMPORTANT INFORMATION

• Please note that this camera can be adapted to display on the original factory screen (CVBS configuration only), however this requires a compatible display adaptor (sold separately). Vehicles equipped with a 4.2" factory display require APVFD03.

Features

• Ford Ranger / Mazda BT-50 Specific Fitment Vehicle specific reverse camera designed to suit Ford Ranger / Mazda BT-50 models (2012-2021) for a seamless OEM style installation.
• Tailgate Handle Replacement Design Mounts discreetly in place of the factory handle without the need to drill additional holes into the vehicle.
• 105° Wide Viewing Angle Reduces rear blind spots and improves visibility when reversing or manoeuvring.
• Selectable Parking Guidelines Switchable visual guidelines provide helpful reference when parking or reversing into tight spaces.
• AHD 720P or CVBS Video Output Selectable via loop wire for broad compatibility with a wide range of aftermarket head units and Aerpro Advanced Safety Vision monitors.
• IP68 Waterproof Rating Protects the camera from dust, mud, and water ingress for reliable performance in harsh conditions.
• Durable ABS Housing Built to withstand the demands of tough automotive environments.
• Wide Operating Temperature Range Rated from -30°C to +80°C for dependable operation in both extreme heat and cold climates.
• Includes 10M Heavy Duty Cable and 4-Pin to RCA Adapter Provides everything needed for flexible integration with most aftermarket displays.

Specifications

• Vehicle Application:
  • Ford Ranger 2012-2015 PX
  • Ford Ranger 2015-2018 PX MkII
  • Ford Ranger 2018-2021 PX MkIII
  • Mazda BT-50 2012-2018
• Installation Position: Tailgate Handle
• Camera Orientation: Reverse
• Selectable (Loop Wire): Yes
  • Green = AHD/CVBS (Default: AHD)
  • White = Fixed Guidelines (Default: ON)
• Image Sensor Type: CMOS
• TV System: NTSC (CVBS)
• Video Output: AHD 720P or CVBS
• Viewing Angle (Diagonal): 105°
• Minimum Illumination (Lux): 0.1 Lux
• Parking Guidelines: Selectable
• Waterproof Rating: IP68
• Operating Voltage Range: 12V DC (9-16V)
• Current Consumption (mA): 450mA
• Operating Temperature Range: -30°C to +80°C
• Connector Type (Camera End): 4-Pin Heavy Duty Female
• Connector Type (Harness End): 4-Pin Heavy Duty Male (RCA Adapter Included)
• Camera Cable Length: 0.5M + 10M Extension
• Mounting Type: OEM Replacement
• Housing Material: ABS
• Dimensions (mm):
• Trigger Wire Included: No
• Trigger Wire Type: Not Applicable
• Adaptable to Factory Screen: Yes – requires optional adaptor (sold separately). Vehicles equipped with a 4.2" factory display require APVFD03.
• Inclusions:
  • Camera
  • 10-metre Video Cable, 4-pin
  • 4-pin to RCA Adapter Cable
