AERPRO 9" MULTIMEDIA RECEIVER TO SUIT MAZDA 3
Brand:
Aerpro
Availability:
Call for Price & Availablity
Part No
AMAMZ6
Price: Login to see price...

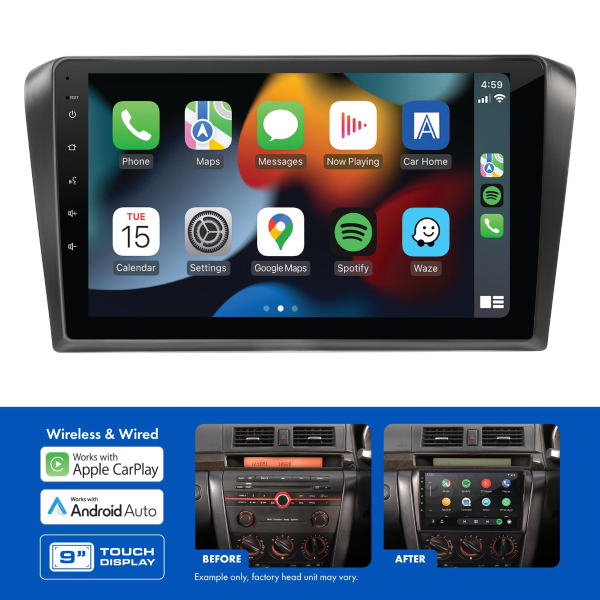

AERPRO 9" MULTIMEDIA RECEIVER TO SUIT MAZDA 3
The Aerpro AMAMZ6 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Mazda 3 BK (2004-2009) non-amplified vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMAMZ6 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls.
Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- Suits factory non-amplified vehicles.
- This head unit is sold as a kit which includes:
- AM9X Multimedia Receiver
- Silver Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
Features
- To suit Mazda 3 BK (2004-2009) non-amplified vehicle
- Includes all the parts required to complete the installation and to retain important vehicle features
- Apple CarPlay & Android Auto (wireless / wired)
- Large 9" capacitive touchscreen display
- Steering wheel control retention
- Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Dual rear USB inputs (1.5A max charging)
- Dual camera inputs (AHD 720P compatible) & rear A/V input
- 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
- 4V/5CH RCA Preout and subwoofer level control
Specifications
AMAMZ6 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
- Kit Inclusions:
- AM9X Multimedia Receiver
- Silver Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Vehicle Feature Retention:
- Steering Wheel Controls: Yes
- Factory Reverse Camera: N/A
- AUX Input: N/A
- USB Input: N/A
- Parking Tones: N/A
- Factory Amplifier: No
- Vehicle Menu: N/A
- Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
- LCD Display:
- Size: 9"
- Resolution: 1024x600
- Touch Screen: Capacitive (G+G)
- System Specifications:
- OS System / CPU: Linux 3.4.5 / SPHE8368U
- RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output
- Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
- MAX Power (4 Ohm): 4CH x 50W
- Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
- Device Ports
- USB 1 (Rear) Playback Formats: CP,AA & Media
- USB 2 (Rear) Playback Formats: Media
- USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
- USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
- Rear A/V Input (RCA Type - 3pcs): Yes
- Composite Video Outputs: Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Second Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V4.2+EDR
- Microphone: Built-in & External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
- AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
- FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
- RDS: Yes
- FM Antenna Connector Impedance: 50 Ohm
- FM Tuner Connector: Motorola
- RCA Preamp Outputs:
- RCA Preamp Output: 2-Pair (Front / Rear)
- Subwoofer RCA Output: Yes
- Subwoofer Level Control: Yes
- Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
- 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
- Loudness: Yes
- LPF - Frequencies (Sub): Yes
- 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): White
- Accessories:
- Power Harness: Yes with ISO/3.5mm jack
- AV-In Cable (RCA with Audio L/R, Video In): Yes
- Reverse Camera Input (with 12V power supply to the camera): Yes
- 4.1CH Audio Out Cable: Yes
- External Microphone: Included
IMPORTANT INFORMATION:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- Suits factory non-amplified vehicles.
