AERPRO 9"/10" INSTALLATION KIT TO SUIT TOYOTA KLUGER
Brand:
Aerpro
Availability:
Call for Price & Availability
Part No
AKTO37
Price: Login to see price...
AERPRO 9"/10" INSTALLATION KIT TO SUIT TOYOTA

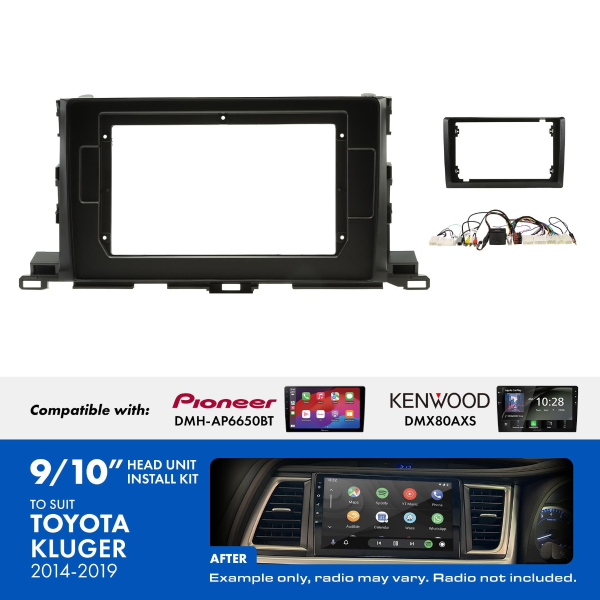

The Aerpro AKTO37 9/10" Installation Kit comes with all of the components required to install a 9/10" trapezoid shaped radio into your Toyota Kluger (2014-2019) vehicles whilst maintaining important vehicle features such as Steering Wheel Control functionality.
Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).
Important Information:
- This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS and Aerpro AM9X & AM10X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
- This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
- The facia kit is designed for left hand drive (LHD) vehicles. The kit will fit without modification however it is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly.
- Feature Retention will be radio dependent.
Features
- To suit Toyota Kluger (2014-2019) vehicles
- Includes all the parts required to complete the installation and to retain important vehicle features
- Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped)
- To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters
Specifications
- Kit Inclusions:
- Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Adaptor to allow for 9" and 10" radios to be installed
- Antenna Adaptor
- Camera Retention Adaptor
- Factory USB Retention Harness
- Vehicle Feature Retention:
- Steering Wheel Controls: Yes (including phone button)
- Factory Reverse Camera: Yes (if equipped)
- AUX Input: Yes
- USB Input: Yes
- Parking Tones: N/A
- Factory Amplifier: No
- Vehicle Menu: No
- Other
- Important Information:
- This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS and Aerpro AM9X & AM10X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
- This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
- The facia kit is designed for left hand drive (LHD) vehicles. The kit will fit without modification however it is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly.
- Feature Retention will be radio dependent.
| Manufacturer | Aerpro |
|---|
