Aerpro 9" Multimedia Receiver To Suit 2012 - 2018
Brand:
Aerpro
Availability:
1
Part No
AMMZ1
Price: Login to see price...
Description

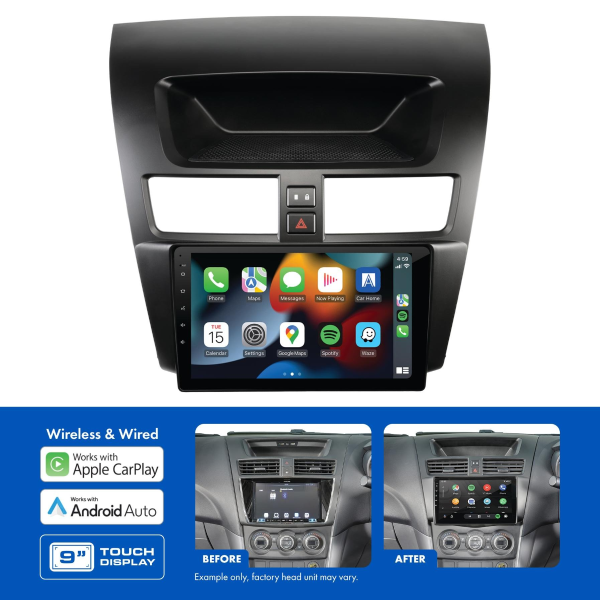

The Aerpro AMMZ1 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Mazda BT-50 (2012-2018) vehicles (without factory navigation). Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner. Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMMZ1 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and parking tone retention (if equipped).
Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately).
Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- Only suitable for vehicles without factory navigation.
- Dash needs modification install this head unit (cutting the plastic sub frame under factory radio).
- Unpair all Bluetooth devices from the factory Bluetooth before uninstalling the factory head unit.
- This kit does not retain the top factory display. The steering wheel controls will retain access to the trip and clock setting adjustments. To view this adjustments the top factory display will need to be relocated elsewhere in the vehicle, this kit does not include a relocation panel or harness. Without the display the trip and clock functions can no longer be accessed.
- This head unit is sold as a kit which includes:
- AM9X Multimedia Receiver
- Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
Features
- To suit Mazda BT-50 (2012-2018) vehicles (without factory navigation)
- Includes all the parts required to complete the installation and to retain important vehicle features
- Apple CarPlay & Android Auto (wireless / wired)
- Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
- Large 9" capacitive touchscreen display
- Steering wheel control (including phone button on selected models) and parking tone retention (if equipped).
- Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Rear USB input (1.5A max charging)
- Reverse camera input (AHD 720P compatible) & rear A/V input
- 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
- 4V/5CH RCA Preout and subwoofer level control
Specs
AMMZ1 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
- Kit Inclusions:
- AM9X Multimedia Receiver
- Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Vehicle Feature Retention:
- Steering Wheel Controls: Yes (including phone button on selected models)
- Factory Reverse Camera: N/A
- AUX Input: N/A
- USB Input: N/A
- Parking Tones: Yes (if equipped)
- Factory Amplifier: N/A
- Vehicle Menu: Yes* (see important notes for more information)
- Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
- LCD Display:
- Size: 9"
- Resolution: 1024x600
- Touch Screen: Capacitive (G+G)
- System Specifications:
- OS System / CPU: Linux 3.4.5 / SPHE8368U
- RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output
- Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
- MAX Power (4 Ohm): 4CH x 40W
- Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
- Device Ports
- USB (Rear) Playback Formats: CPAA & Media
- USB (Rear) Power - Voltage/Amps: 5V/1.5A
- USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
- Rear A/V Input (RCA Type - 3pcs): Yes
- Composite Video Outputs: Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V4.2+EDR
- Microphone: Built-in & External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
- AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
- FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
- RDS: Yes
- FM Antenna Connector Impedance: 50 Ohm
- FM Tuner Connector: Motorola
- RCA Preamp Outputs:
- RCA Preamp Output: 2-Pair (Front / Rear)
- Subwoofer RCA Output: Yes
- Subwoofer Level Control: Yes
- Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
- 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
- Loudness: Yes
- LPF - Frequencies (Sub): Yes
- 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): White
- Accessories:
- Power Harness: Yes with ISO/3.5mm jack
- AV-In Cable (RCA with Audio L/R, Video In): Yes
- Reverse Camera Input (with 12V power supply to the camera): Yes
- 4.1CH Audio Out Cable: Yes
- External Microphone: Included
IMPORTANT INFORMATION:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- Only suitable for vehicles without factory navigation.
- Dash needs modification install this head unit (cutting the plastic sub frame under factory radio).
- Unpair all Bluetooth devices from the factory Bluetooth before uninstalling the factory head unit.
- This kit does not retain the top factory display. The steering wheel controls will retain access to the trip and clock setting adjustments. To view this adjustments the top factory display will need to be relocated elsewhere in the vehicle, this kit does not include a relocation panel or harness. Without the display the trip and clock functions can no longer be accessed.
| Auto Brand | Mazda |
|---|---|
| Manufacturer | Aerpro |
