AERPRO 9" MULTIMEDIA RECEIVER TO SUIT 2009-2013 HYUNDAI 1X35
Brand:
Aerpro
Availability:
1
Part No
AMHY8
Price: Login to see price...

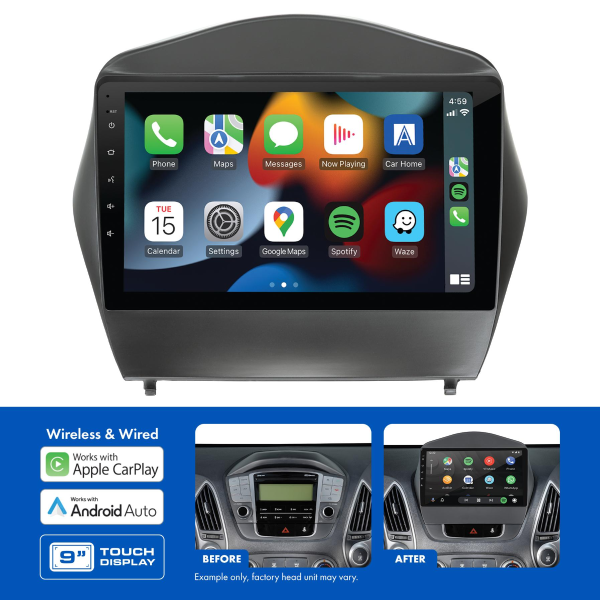

The Aerpro AMHY8 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Hyundai iX35 LM1, LM2 (2009-2013) digitally amplified vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMHY8 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and factory digital amplified system.
Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- Suits vehicles with Hyundai Mobis 96170 (6 stacker) & LM01 factory head units.
- This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
- This head unit is sold as a kit which includes:
- AM9X Multimedia Receiver
- Matte Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
Features
- To suit Hyundai iX35 LM1, LM2 (2009-2013) digitally amplified vehicles
- Includes all the parts required to complete the installation and to retain important vehicle features
- Apple CarPlay & Android Auto (wireless / wired)
- Large 9" capacitive touchscreen display
- Steering wheel control (including phone button) and factory digital amplified system retention
- Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Rear USB input (1.5A max charging)
- Dual camera inputs (AHD 720P compatible) & rear A/V input
- 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
- 4V/5CH RCA Preout and subwoofer level control
Specifications
AMHY8 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
- Kit Inclusions:
- AM9X Multimedia Receiver
- Matte Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Vehicle Feature Retention:
- Steering Wheel Controls: Yes (including phone button)
- Factory Reverse Camera: N/A
- AUX Input: No (APHYUSB4 USB/AUX Retention Adaptor available, sold separately)
- USB Input: No (APHYUSB4 USB/AUX Retention Adaptor available, sold separately)
- Parking Tones: N/A
- Factory Amplifier: Yes
- Vehicle Menu: N/A
- Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
- LCD Display:
- Size: 9"
- Resolution: 1024x600
- Touch Screen: Capacitive (G+G)
- System Specifications:
- OS System / CPU: Linux 3.4.5 / SPHE8368U
- RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output
- Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
- MAX Power (4 Ohm): 4CH x 50W
- Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
- Device Ports
- USB 1 (Rear) Playback Formats: CP,AA & Media
- USB 2 (Rear) Playback Formats: Media
- USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
- USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
- Rear A/V Input (RCA Type - 3pcs): Yes
- Composite Video Outputs: Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Second Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V4.2+EDR
- Microphone: Built-in & External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
- AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
- FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
- RDS: Yes
- FM Antenna Connector Impedance: 50 Ohm
- FM Tuner Connector: Motorola
- RCA Preamp Outputs:
- RCA Preamp Output: 2-Pair (Front / Rear)
- Subwoofer RCA Output: Yes
- Subwoofer Level Control: Yes
- Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
- 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
- Loudness: Yes
- LPF - Frequencies (Sub): Yes
- 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): White
- Accessories:
- Power Harness: Yes with ISO/3.5mm jack
- AV-In Cable (RCA with Audio L/R, Video In): Yes
- Reverse Camera Input (with 12V power supply to the camera): Yes
- 4.1CH Audio Out Cable: Yes
- External Microphone: Included
IMPORTANT INFORMATION:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- Suits vehicles with Hyundai Mobis 96170 (6 stacker) & LM01 factory head units.
- This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
