Aerpro 24V-12V 10 Amp Voltage Reducer
Brand:
Aerpro
Availability:
1
Part No
APC10A
Price: Login to see price...
Description

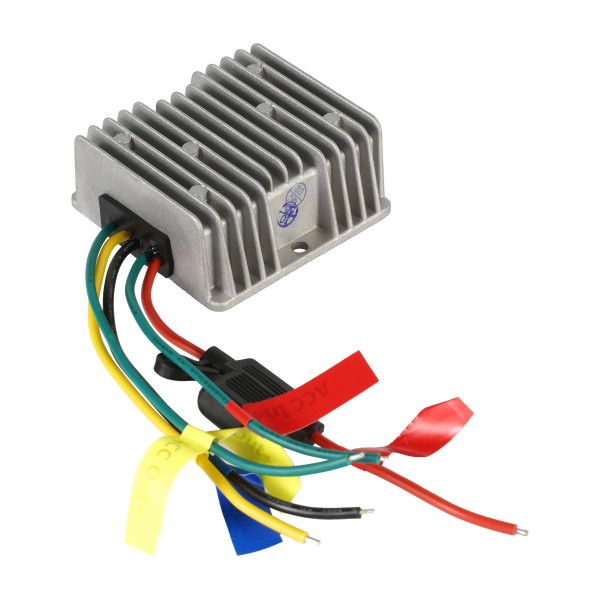

The Aerpro APC10A 10 Amp 24V to 12V DC Power Converter reduces voltage from 24 volts to 12 volts, enabling installation of 12V equipment into 24V vehicles such as trucks. Featuring both constant and accessory wires, APC10A is ideal for use when installing an aftermarket stereo and other 12V accessories that require a constant and accessory power feed. Maximum power output for this unit is 10 amps.
Features
- 10 Amp max output current
- Steps down power from 24V to 12V
- Includes both constant and accessory wires
- Suitable for installing 12V accessories into 24V vehicles
- Over/low voltage, short circuit, over current protection
- Inline fuse protection
- Advanced switch mode design
- Compact and light weight
- IP68 Dustproof / Waterproof
- Easy and quick installation
Specs
- Input Voltage: 24V DC
- Input Voltage Range: 18-40V DC
- Output Voltage: 13.8V DC
- Output Current: 10A
- Efficiency: > 95%
- Power Rate: 138W
- Peak Current: 130%
- Inputs: Constant & Accessories
- Outputs: Constant & Accessories
- Standby Current: 20mA
- Working Temp: -35C to +80C
- Waterproof Rate: IP68
- Over Current Protection: Yes
- Over Voltage Protection: Yes
- Over Heat Protection: Yes
- Short Circuit Protection: Yes
- Device Size: 74x74x34mm
- Weight: 300g
- Housing: Die-Cast Aluminum
| Manufacturer | Aerpro |
|---|
