Aerpro 10" Multimedia Receiver To Suit Nissan
Brand:
Aerpro
Availability:
1
Part No
AMNI1
Price: Login to see price...
Description

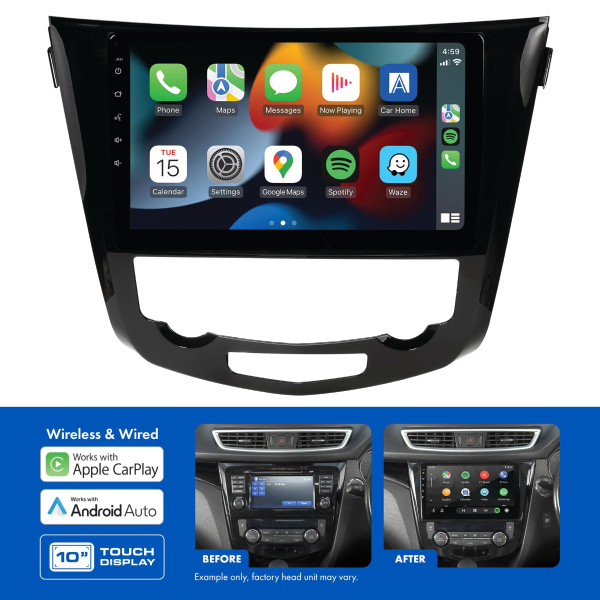

The Aerpro AMNI1 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Nissan Qashqai (2014-2019) & X-Trail (2014-ON) vehicles with factory sat nav and 360 degree camera system. Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner. Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMNI1 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, USB input, AUX input and the factory 360 degree camera system.
Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately).
Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- Suits Nissan Qashqai (2014-2019) & X-Trail (2014-ON) vehicles with factory sat nav and 360 degree camera system.
- Late model X-Trail T32 (2020-ON) may not have a removable blanking plate at the bottom like earlier models. Genuine Nissan part number 68450-4BA0A required (not included).
- 360 Degree Camera Retention uses the reverse camera input of the head unit.
- USB Input Retention uses the USB input on the rear of the head unit.
- AUX Input Retention uses the RCA AUX input on the rear of the head unit.
- Includes switchable camera viewing modes with the handy factory-style button
- This head unit is sold as a kit which includes:
- AM10X Multimedia Receiver
- Gloss Black Facia Kit
- Steering Wheel Control Interface Harness (with Camera, AUX & USB Retention)
- SWC Patch Lead
- Antenna Adaptor
Features
- To suit Nissan Qashqai (2014-2019) & X-Trail (2014-ON) vehicles with factory sat nav and 360 degree camera system
- Includes all the parts required to complete the installation and to retain important vehicle features
- Apple CarPlay & Android Auto (wireless / wired)
- Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
- Large 10" capacitive touchscreen display
- Steering wheel control (including phone button), USB input, AUX input and the factory 360 degree camera retention
- Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Rear USB input (1.5A max charging)
- Reverse camera input (AHD 720P compatible) & rear A/V input
- 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
- 4V/5CH RCA Preout and subwoofer level control
Specs
AMNI1 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
- Kit Inclusions:
- AM10X Multimedia Receiver
- Gloss Black Facia Kit
- Steering Wheel Control Interface Harness (with Camera, AUX & USB Retention)
- SWC Patch Lead
- Antenna Adaptor
- Vehicle Feature Retention:
- Steering Wheel Controls: Yes (including phone button)
- Factory Reverse Camera: Yes 360 Degree System
- AUX Input: Yes
- USB Input: Yes
- Parking Tones: N/A
- Factory Amplifier: N/A
- Vehicle Menu: Yes (clock settings)
- Other: N/A
AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:
- LCD Display:
- Size: 10"
- Resolution: 1024x600
- Touch Screen: Capacitive (G+G)
- System Specifications:
- OS System / CPU: Linux 3.4.5 / SPHE8368U
- RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output
- Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
- MAX Power (4 Ohm): 4CH x 40W
- Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
- Device Ports
- USB (Rear) Playback Formats: CPAA & Media
- USB (Rear) Power - Voltage/Amps: 5V/1.5A
- USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
- Rear A/V Input (RCA Type - 3pcs): Yes
- Composite Video Outputs: Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V4.2+EDR
- Microphone: Built-in & External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
- AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
- FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
- RDS: Yes
- FM Antenna Connector Impedance: 50 Ohm
- FM Tuner Connector: Motorola
- RCA Preamp Outputs:
- RCA Preamp Output: 2-Pair (Front / Rear)
- Subwoofer RCA Output: Yes
- Subwoofer Level Control: Yes
- Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
- 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
- Loudness: Yes
- LPF - Frequencies (Sub): Yes
- 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): White
- Accessories:
- Power Harness: Yes with ISO/3.5mm jack
- AV-In Cable (RCA with Audio L/R, Video In): Yes
- Reverse Camera Input (with 12V power supply to the camera): Yes
- 4.1CH Audio Out Cable: Yes
- External Microphone: Included
IMPORTANT INFORMATION
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- Suits Nissan Qashqai (2014-2019) & X-Trail (2014-ON) vehicles with factory sat nav and 360 degree camera system.
- Late model X-Trail T32 (2020-ON) may not have a removable blanking plate at the bottom like earlier models. Genuine Nissan part number 68450-4BA0A required (not included).
- 360 Degree Camera Retention uses the reverse camera input of the head unit.
- USB Input Retention uses the USB input on the rear of the head unit.
- AUX Input Retention uses the RCA AUX input on the rear of the head unit.
- Includes switchable camera viewing modes with the handy factory-style button
| Auto Brand | Nissan |
|---|---|
| Manufacturer | Aerpro |
