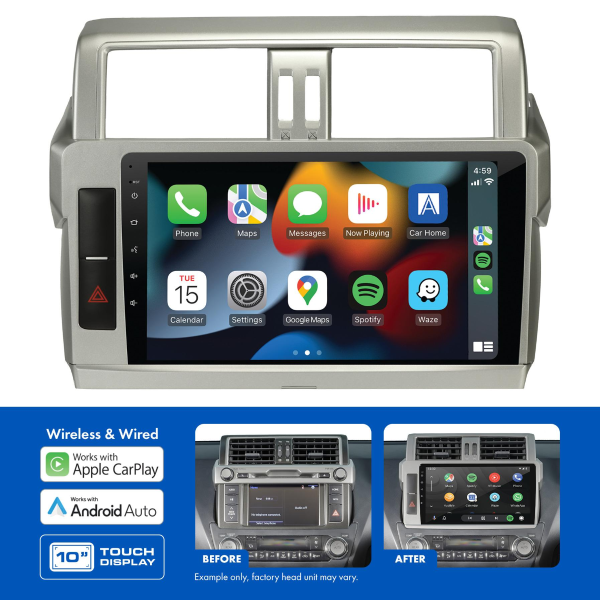

AERPRO 10" MULTIMEDIA RECEIVER TO SUIT 2013-17

Brand: Aerpro
Availability: 1
Part No
AMATO36
The Aerpro AMATO36 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Toyota Prado (2013-2017) vehicles. Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner. Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMATO36 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, USB input, AUX input, parking tones and the factory reverse camera.

Important Information:

  • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  • Reverse Camera Retention uses the reverse camera input of the head unit.
  • USB Input Retention uses the USB input on the rear of the head unit.
  • AUX Input Retention uses the RCA AUX input on the rear of the head unit.
  • Reverse Sensor Audio retained but not sensor visualisation (tiny overlay of car showing which sensor is active).
  • Left Hand Hazard button cover included to transfer factory hazard to new position.
  • This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
  • This head unit is sold as a kit which includes:
    • AM10X Multimedia Receiver
    • Silver Facia Kit
    • Steering Wheel Control Interface Harness
    • SWC Patch Lead
    • Antenna Adaptor
    • Camera Retention Adaptor
    • USB Retention Adaptor


Features

  • To suit Toyota Prado (2013-2017) vehicles
  • Includes all the parts required to complete the installation
  • Apple CarPlay & Android Auto (wireless / wired)
  • Large 10" capacitive touchscreen display
  • Steering wheel control, USB input, AUX input, parking tones and factory reverse camera retention
  • Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
  • AM / FM Tuner with RDS & presets (18FM/12AM)
  • Rear USB input (1.5A max charging)
  • Dual camera inputs (AHD 720P compatible) & rear A/V input
  • 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
  • 4V/5CH RCA Preout and subwoofer level control


Specifications

AMATO36 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

  • Kit Inclusions:
    • AM10X Multimedia Receiver
    • Silver Facia Kit
    • Steering Wheel Control Interface Harness
    • SWC Patch Lead
    • Antenna Adaptor
    • Camera Retention Adaptor
    • USB Retention Adaptor
  • Vehicle Feature Retention:
    • Steering Wheel Controls: Yes
    • Factory Reverse Camera: Yes
    • AUX Input: Yes
    • USB Input: Yes
    • Parking Tones: Yes
    • Factory Amplifier: N/A
    • Vehicle Menu: N/A
    • Other: N/A

AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:

  • LCD Display:
    • Size: 10"
    • Resolution: 1024x600
    • Touch Screen: Capacitive (G+G)
  • System Specifications:
    • OS System / CPU: Linux 3.4.5 / SPHE8368U
    • RAM / Flash Memory: 128MB / 256MB
  • DIN Size: 2 DIN Short Body
  • Power Output
    • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
    • MAX Power (4 Ohm): 4CH x 50W
  • Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
  • Device Ports
    • USB 1 (Rear) Playback Formats: CP,AA & Media
    • USB 2 (Rear) Playback Formats: Media
    • USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
    • USB MAX Capability: FAT32_32GB
  • Aux Inputs / Outputs:
    • Rear A/V Input (RCA Type - 3pcs): Yes
    • Composite Video Outputs: Yes
    • Reverse Camera Input: Yes (720P AHD Compatible)
    • Second Camera Input: Yes (720P AHD Compatible)
  • Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
  • Bluetooth:
    • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
    • Bluetooth Version: V4.2+EDR
    • Microphone: Built-in & External Microphone
    • ID3 Tag/Information (Artist, Album, Song): Yes
    • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
  • Tuner:
    • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
    • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
    • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
    • RDS: Yes
    • FM Antenna Connector Impedance: 50 Ohm
    • FM Tuner Connector: Motorola
  • RCA Preamp Outputs:
    • RCA Preamp Output: 2-Pair (Front / Rear)
    • Subwoofer RCA Output: Yes
    • Subwoofer Level Control: Yes
    • Preamp Voltage (1.2,2,4,5,6): 4V p-p
  • Tone Control:
    • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
    • Loudness: Yes
    • LPF - Frequencies (Sub): Yes
    • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
  • Other Features:
    • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
    • OSD Language: English
    • LED Colour (Buttons / Keys): White
  • Accessories:
    • Power Harness: Yes with ISO/3.5mm jack
    • AV-In Cable (RCA with Audio L/R, Video In): Yes
    • Reverse Camera Input (with 12V power supply to the camera): Yes
    • 4.1CH Audio Out Cable: Yes
    • External Microphone: Included

IMPORTANT INFORMATION:

  • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  • Reverse Camera Retention uses the reverse camera input of the head unit.
  • USB Input Retention uses the USB input on the rear of the head unit.
  • AUX Input Retention uses the RCA AUX input on the rear of the head unit.
  • Reverse Sensor Audio retained but not sensor visualisation (tiny overlay of car showing which sensor is active).
  • Left Hand Hazard button cover included to transfer factory hazard to new position.
  • This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
