LED 12V Combination Tailight (428 X 97 X 22mm)

LED 12V Combination Tailight (428 X 97 X 22mm)

LED 12-24V Combination Tailight With Reverse Light And Red Housing (275 X 100 X 33mm)

LED 12-24V Combination Tailight With Reverse Light And Red Housing (275 X 100 X 33mm)

LED 12-24V Combination Tailight With Reverse Light And Grey Housing (275 X 100 X 33mm)

Availability: 1
Part No
275GARWMB

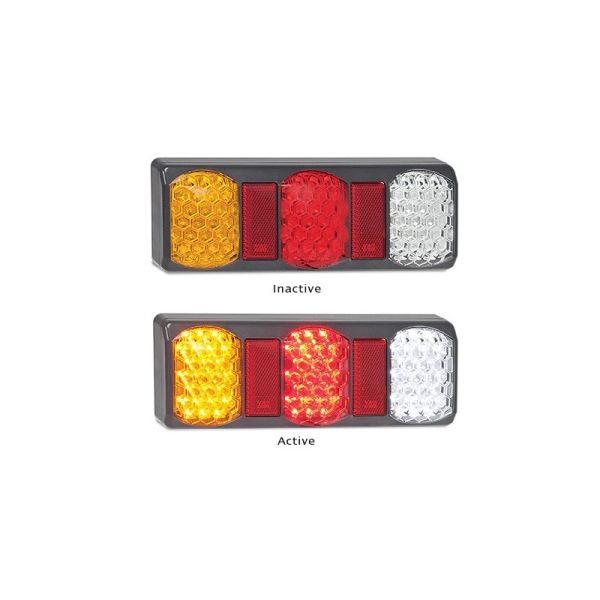

LED 12-24V Combination Tailight With Reverse Light And Grey Housing (275 X 100 X 33mm)

LED 12-24V Combination Tailight With Reverse Light And Grey Housing (275 X 100 X 33mm)

Features / Specifications

  • High Brightness LEDs
  • ADR approved
  • IP67 100% Water proof
  • 5 Year Warranty



Input Voltage Range 12-24V
LED Qty 72
Cable 20cm
Current Draw Stop: 0.23A at 13.8V, 0.12A at 28V
Tail: 0.04A at 13.8V, 0.04A at 28V
Indicator: 0.22A at 13.8V, 0.12A at 28V
Reverse: 0.16A at 13.8V, 0.09A at 28V
IP Rating IP67
Size 275 X 100 X 33mm
ADR Stop/Tail: 49/00 43223
Indicator: 6/00 2a 43221
Reverse: 1/00 43222
Reflector: 02 1A 1472
CTA 49/00, 6/00 2a, 1/00 CTA-060144



More Information
Manufacturer LED Autolamps
Light Source LED
Voltage 12-24V
