DAVIES CRAIG 24V UNIVERSAL FAN FITTING KIT
Brand:
Davies Craig
Availability:
Call for Price & Availablity
Part No
1001DC
Price: Login to see price...
DAVIES CRAIG 24V UNIVERSAL FAN FITTING KIT
|

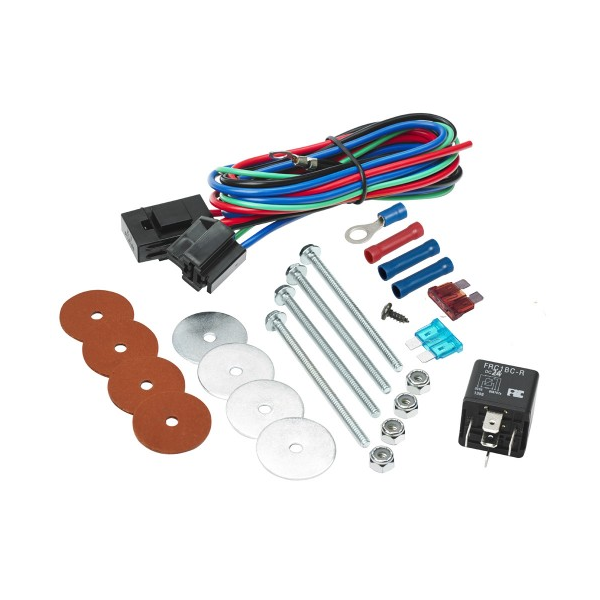

KIT CONTENTS |
|
|
DESCRIPTION |
UNITS |
| Fuse Wedge 7.5 AMP |
1 |
| Fuse Wedge 15 AMP | 1 |
| Red Wire Joiner | 1 |
| Nut Nyloc 3/16 | 4 |
| Bolt Hex W/F 3x3/16 | 4 |
| Relay - 24V 40 AMP 5 Pin with Resistor Protection | 1 |
| Washer - Fibre Red | 4 |
| Washer Mudguard Silver | 4 |
| Blue Wire Joiner | 2 |
| Blue 6mm Ring Terminal | 1 |
| Wiring Harness - Fan 12& 24 Volt | 1 |
| Screw Self Tap | 1 |
| Universal Fan Hardware Kit Instructions | 1 |
MOUNTING YOUR ELECTRIC FAN
Please pay particular attention to the markings on the fan hub/blade regarding the direction the fan should operate as Davies Craig Electric Fans are reversible. Once the fan is installed the arrow may not be visible.
The Thermatic Fan fitting instructions must be closely followed, regardless of whether the unit is mounted upstream or downstream.
|
FAN SIZE |
VOLTAGE |
RECOMMENDED FUSE (AMPS) |
| 8 “ 9” 10” 12” 14” | 12V | 15A |
| 14”HP & 16” | 12V | 30A |
| 8 “ 9” 10” 12” 14” | 24V | 7.5A |
| 14”HP & 16" | 24V | 15A |
If you wish to thematically control the electric fan(s) you should purchase a Davies, Craig Thermatic Switch Kit, Part: #0401, #0400 Combo Kit or a Twin Fan Thermatic Controller Part, #0444, #0445 or #0500 .
If you wish to cool both the radiator and AC condenser you should purchase Part #0444, #0445, #0500 or a Thermatic Switch & Relay Kit, Part #0404 - which contains the Thermatic Switch with an extra relay and wiring loom.
| Manufacturer | Davies Craig |
|---|
